Elite Loft Ladder. Heavy duty loft ladder. Premier Loft Ladders

Concertina loft ladder Load rating of 200kg per tread Overall Load rating. 500kg/m2 Supplied with handrail as standard Lightweight operation. Less than 3kg load. Available made-to-measure Easy installation

Elite Loft Ladder

The Elite heavy duty loft ladder…

…easy to operate and very strong; a proven solution for a wide range of applications

From £620 (excl. VAT)

Available from stock for delivery in 1-2 days

KEY FEATURES

Material: Pressure die-cast aluminium
Operation: Spring-assisted retractable ladder
Load capacity: 200kg per step
U-value: N/A
Max floor-to-ceiling height: 3.39m

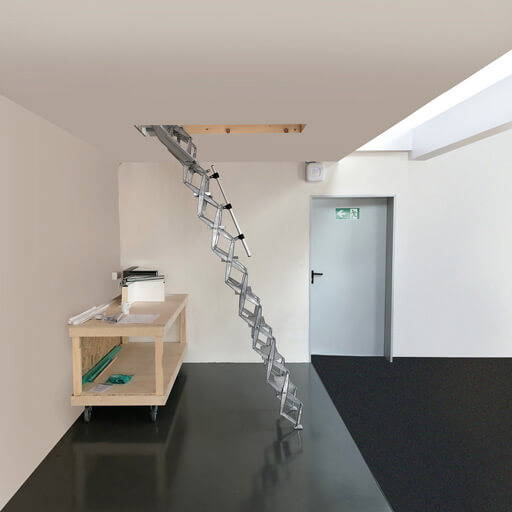

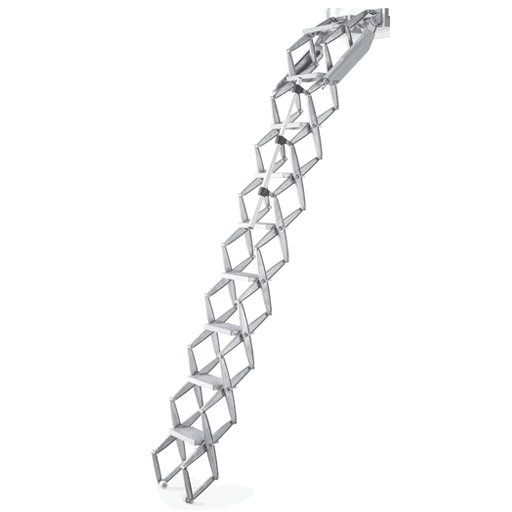

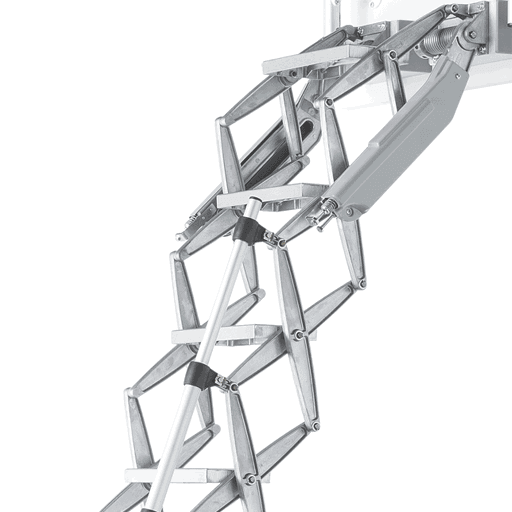

The Elite heavy duty concertina loft ladder is ideal for a renovation project or replacement of an old loft ladder. It is easy to install within an existing ceiling opening or hatch box.

Supplied as a ready to fit unit, The Elite loft ladder is manufactured from high strength die-cast aluminium alloy components. It is supplied with two heavy duty counter-balanced springs incorporated into pivot brackets. As a result, it can be raised and lowered with a minimum of effort.

Also, large treads, non-slip protective feet and telescopic handrail (supplied as standard) offer comfort, safety and ease of egress.



Key benefits at a glance

  • High strength, heavy duty loft ladder.
  • Load capacity of 200kg per step.
  • Ease of use, requiring operating forces of less than 3kg.
  • Space-saving concertina loft ladder for small ceiling openings.
  • Ideal for retro-fit applications.
  • Large steps for comfort and safety.
  • Telescopic handrail (can be fitted to left or right)
  • Available in standard sizes or made-to-order with a wide range of options and accessories.



  • Spring-assisted concertina (retractable) loft ladder
    • Easy to operate, requiring less than 3kg of force to open/close.
  • Concertina ladder manufactured from pressure die-cast aluminium
    • Lightweight
    • Strength
    • Stability
    • Durability
  • High strength, heavy duty loft ladder, with a load capacity of 200kg per step.
  • Supplied assembled to a fascia board that can be easily installed within an existing hatch box or directly to the ceiling timbers or masonry.
  • Available in standard sizes for opening width of 600mm (or larger) and floor-to-ceiling heights of 2200mm to 3390mm.
  • Can be made-to-order in a range of different widths for ceiling openings as narrow as 430mm (contact us for details).

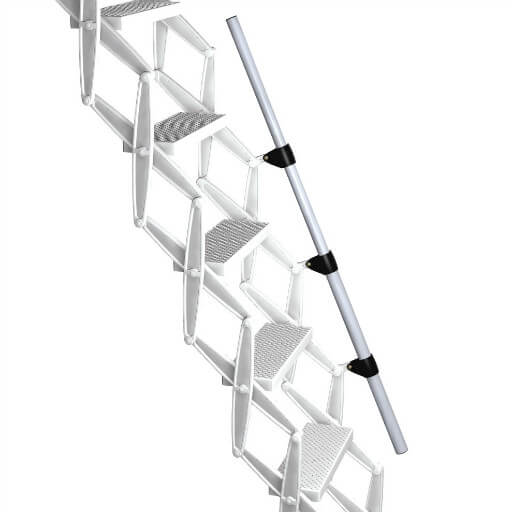

  • Telescopic handrail.
  • Large steps / treads for improved safety, comfort and ease of egress
    • Standard step width of 350mm
    • Maximum stair width supplied to fit your opening width
    • Step width from 200mm to 380mm.
    • Step depth of 140mm
  • Non-slip protective feet

Elite Vertical loft ladder

  • The Elite concertina loft ladder can be fitted with a hinge mechanism (see image gallery) that allows it to be stowed vertically. As such, it can be used within a vertical wall opening or on a mezzanine floor.
  • The damped hinge mechanism allows for safe and easy operation. In addition, it allows the Elite Vertical to be positioned behind a door, up to 40mm from the edge of the opening (80mm with special modification).
  • Please contact us for further details.

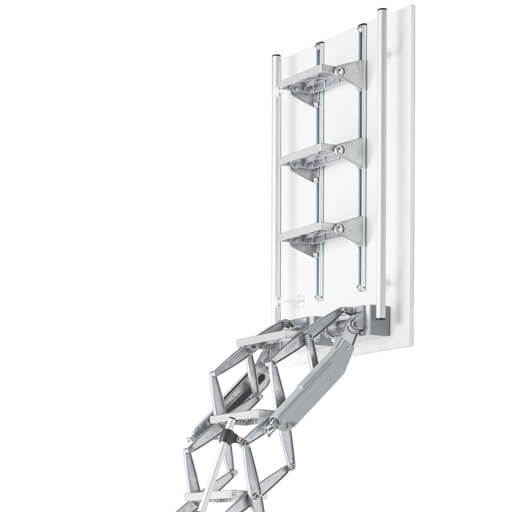

Elite with high backboard

  • The Elite can be ordered with a made-to-measure backboard (see image gallery) to enable egress through deep ceiling voids.
  • The high backboard features height-adjustable steps. Also, it features safety rails on both the left and right.
  • Backboard width – 590mm up to 1100mm
  • Backboard height –  490mm up to 2000mm
  • In addition, the backboard can also be ordered separately from the Elite loft ladder.
  • Please contact us to discuss your needs.



Elite with LAMILUX high backboard

  • Also available with a special high backboard that is designed for use with LAMILUX roof lights. As such, offering safe and easy access to a flat roof for both commercial and residential projects.
  • Suitable for LAMILUX CI system rooflight dome F100 and the LAMILUX CI System glass element F100.
  • The LAMILUX rooflight requires a special bracket. The Elite with LAMILUX high backboard is then secured to the bracket using only a few simple fixings (supplied).
  • Contact us for further information.

The Elite loft ladder is available in the following standard sizes that can be ordered online.

No. of treads

Minimum Opening length (mm) Clear room height (mm)

9

620

2200 – 2500

10

670

2501 – 2790

11

750

2791 – 3090

12 820

3091 – 3390



Opening width (from) (mm)

Tread/step width (mm)

580

350



Available made-to-measure…

The Elite is available in other sizes to suit opening widths from 430mm. Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and arrange a quotation.

CSS PLL Elite & Elite special backboard

  • Manufactured to EN 14975
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

The Elite loft ladder is available as a BIM model/object from Bimstore.

Click here to download

Accessories

The following accessories are only available for order with an Elite heavy duty loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

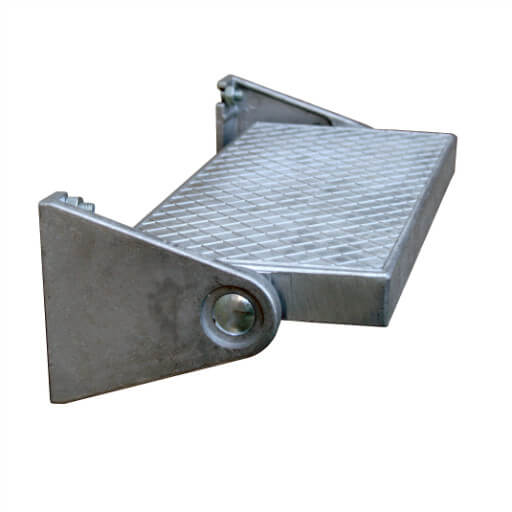

Additional tread for use with aluminium retractable loft ladders

Additional Treads

from £70 (excl. VAT)

Folding tread for use with aluminium retractable loft ladders

Additional Folding Treads

£105 (excl. VAT)

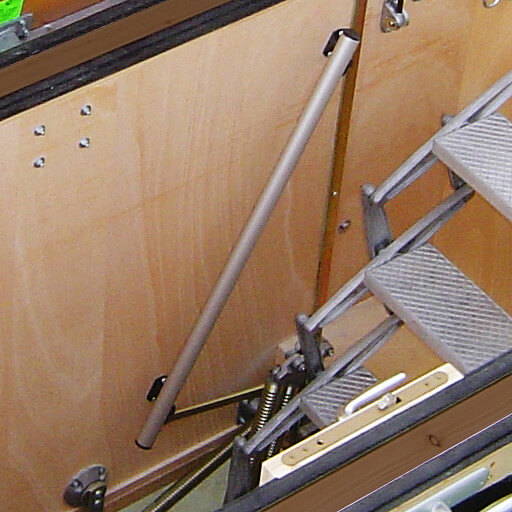

Grab rail for use in deep hatch box

Grab Rail

£95 (excl. VAT)

Brochure

Elite loft ladder brochure

Aluminium concertina loft ladder brochure

Drawings

Elite loft ladder drawing – 6000231C

Elite 9 tread loft ladder for installation in conventional ceiling openings

Elite 9 tread loft ladder for installation in deep hatches or on vertical walls

Elite 10 tread loft ladder for installation in conventional ceiling openings

Elite 10 tread loft ladder for installation in deep hatches or on vertical walls

Elite 11 tread loft ladder for installation in conventional ceiling openings

Elite 11 tread loft ladder for installation in deep hatches or on vertical walls

Elite 12 tread loft ladder for installation in conventional ceiling openings

Elite 12 tread loft ladder for installation in deep hatches or on vertical walls

Elite loft ladder with high-backboard – 6000419A

Elite loft ladder with high-backboard – backboard heights

Elite Vertical loft ladder (for mezzanine floors and vertical wall openings) – 6000453

NBS Plus

Technical specification for the Elite heavy duty concertina loft ladder can be found on NBS Plus.

Premier Loft Ladders technical specifications available on NBS Plus

Case Studies

Elite Vertical loft Ladder fitted into New Build home. Premier Loft Ladders

Elite Vertical loft ladder proves to be the perfect solution for a New Build project in France

Jill Ranford and Patrick Taggart are the proud owners of a beautiful new build home in Southern France. The main bedroom features a vaulted ceiling with access to a loft via a wall hatch located 2.7m up from the floor. Therefore a loft ladder was required that could be easily operated at that height and could be folded behind the wall hatch door without taking up too much loft space. The Elite Vertical Loft Ladder proved to be the perfect solution for Jill and Patrick’s needs.

“The Elite is now installed in our loft doorway and performs beautifully. It is so unlike cheap loft ladders that I’ve come across in the past”

Jill Ranford

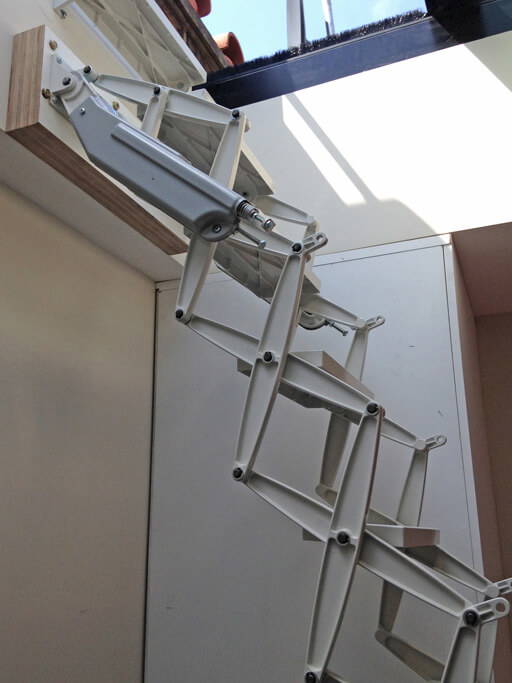

Skylight access loft ladder. Elite loft ladder from Premier Loft Ladders

Elite access to rooflight

Making the most of outdoor space in an urban environment is very important. With land at a premium, more people are converting their flat roof space to a garden retreat. How do you get to it though? A full size staircase takes up a lot of room and can be quite expensive, especially for occasional use. Doone Lambert had exactly that problem at her Hammersmith, London apartment.

As such, Doone chose the Elite Loft Ladder. The Elite saved both space and money, while still providing safe and convenient access to the flat roof. Furthermore, the custom grey-white powder coat finish meant that it nicely matched the room’s decor.
