Elite Vertical Loft Ladder
The Elite Vertical heavy duty loft ladder…
…easy to operate and very strong; for vertical wall apertures and mezzanine floors
From £1,525 (excl. VAT)
Including delivery to any UK mainland address
KEY FEATURES
Material: Pressure die-cast aluminium
Operation: Spring-assisted retractable ladder
Load capacity: 200kg per step
U-value: N/A
Max floor-to-ceiling height: 3.39m
The Elite Vertical heavy duty loft ladder is designed for use on a mezzanine floor or fitted within a wall aperture. Supplied as a ready to fit unit, it is manufactured from high strength die-cast aluminium alloy components. It features a damped hinge mechanism and two heavy duty counter-balanced springs. As a result, the Elite Vertical can be raised and lowered with a minimum of effort.
In addition, large treads, non-slip protective feet and telescopic handrail (supplied as standard) offer comfort, safety and ease of egress.
Key benefits at a glance
- High strength, heavy duty loft ladder
- Load capacity of 200kg per step
- Ease of use
- Space-saving concertina loft ladder
- Ideal for retro-fit applications
- Large steps for comfort and safety
- Telescopic handrail (can be fitted to left or right)
- Made-to-measure
- Spring-assisted concertina (retractable) vertical loft ladder
- Easy to operate
- Concertina ladder manufactured from pressure die-cast aluminium
- Lightweight
- Strength
- Stability
- Durability
- High strength, heavy duty loft ladder, with a load capacity of 200kg per step.
- Easy to install within a vertical wall aperture or directly onto a mezzanine floor.
- Can be positioned behind a door, up to 40mm from the edge of the aperture.
- Also available with a modified hinge-mechanism allowing the ladder to be set back up to 80mm (please contact us for further details).
- Made-to-order in a range of different widths for heights of up to 3390mm and openings as narrow as 460mm (contact us for details).
- Telescopic handrail.
- Large steps / treads for improved safety, comfort and ease of egress
- Maximum stair width supplied to fit your opening width
- Step width from 200mm to 380mm.
- Step depth of 140mm
- Non-slip protective feet
The Elite loft ladder is made-to-order in the following sizes:
|
No. of treads |
Minimum aperture height (mm) | Floor height (mm) |
|
8 |
750 |
1900 – 2200 |
|
9 |
780 |
2201 – 2500 |
|
10 |
830 |
2501 – 2790 |
|
11 |
910 |
2791 – 3090 |
| 12 | 980 |
3091 – 3390 |
|
Opening width (from) (mm) |
Tread/step width (mm) |
|
460 |
200 |
|
510 |
250 |
|
560 |
300 |
|
610 |
350 |
|
640 |
380 |
Please contact us to discuss your requirements and arrange a quotation.
- Manufactured and tested to EN 14975 (certified by TÜV SÜD)
- Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty
Alternatively, please click here to view our full range of available BIM models.
Video
Accessories
The following accessories are only available for order with an Elite heavy duty loft ladder. Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.
Drawings
Data Sheet
NBS Source
Technical specification for the Elite Vertical heavy duty concertina loft ladder can be found on NBS Source. Within the ‘Accessories’ section of the specification, please choose ‘Accessory hinge (Elite Vertical)’.
Case Studies

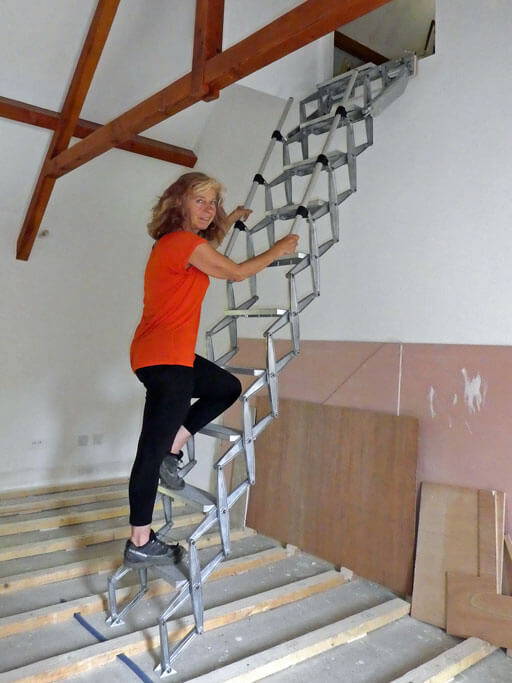

Elite Vertical loft ladder proves to be the perfect solution for a New Build project in France
Jill Ranford and Patrick Taggart are the proud owners of a beautiful new build home in Southern France. The main bedroom features a vaulted ceiling with access to a loft via a wall hatch located 2.7m up from the floor. Therefore a loft ladder was required that could be easily operated at that height and could be folded behind the wall hatch door without taking up too much loft space. The Elite Vertical Loft Ladder proved to be the perfect solution for Jill and Patrick’s needs.
“The Elite is now installed in our loft doorway and performs beautifully. It is so unlike cheap loft ladders that I’ve come across in the past”
Jill Ranford
