Piccolo Premium Loft Ladder. Ideal for small ceiling openings. Easy to operate

Concertina loft ladder Load rating of 150kg per tread Overall Load rating. 350kg/m2 Easy installation

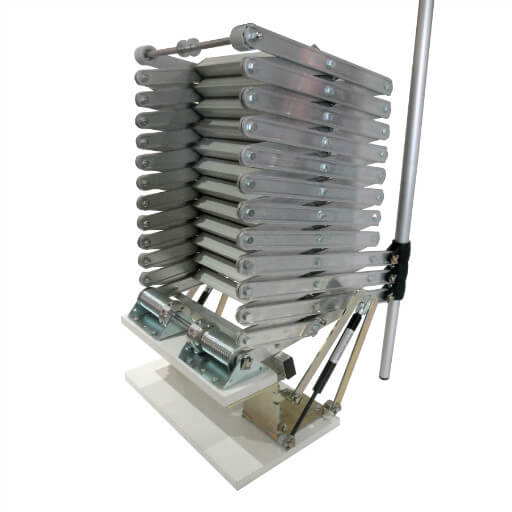

Picollo Premium Vertical Loft Ladder

The Piccolo Premium Vertical concertina loft ladder…

…the compact solution for use in wall apertures and mezzanine floors

From £830 (excl. VAT)

KEY FEATURES

Material: Aluminium
Operation: Retractable ladder
Load capacity: 150kg per step
U-value: N/A
Max floor-to-floor height: 3.00m

The Piccolo Premium Vertical loft ladder is easy to fit and made from aluminium alloy components.  The ladder’s compact, space-saving concertina design makes it perfect for small wall openings or for use on a mezzanine floor.

The counter-balance spring mechanism make the Piccolo Premium Vertical safe and easy to use. Furthermore, the special damped hinge mechanism allows the the ladder to be stowed away from the edge of the aperture or hidden behind a door (door thickness up to 40 mm).



Key benefits at a glance

  • Space-saving retractable loft ladder for small wall openings and mezzanine floors
  • Lightweight and durable aluminium ladder.
  • Load capacity of 150kg per step.
  • Safe and easy to use.
  • Easy to install.
  • Spring-assisted concertina (retractable) vertical loft ladder
    • Easy to operate
    • Compact, space-saving design
  • Retractable ladder manufactured from aluminium
    • Lightweight
    • Strength
    • Durability
  • Load capacity of 150kg per step
  • Easy to install within a vertical wall aperture or directly onto a mezzanine floor.
  • Available for floor-to-floor heights up to 3m
  • Wide treads with non-slip profile
    • 330mm wide (for opening widths of 450mm and over).
    • Step depth of 80mm
  • Can be positioned behind a door, up to 40mm from the edge of the aperture.
    • Also available with a modified hinge-mechanism allowing the ladder to be set back up to 80mm (please contact us for further details).
  • The Piccolo Premium Vertical can be fitted with a telescopic handrail for enhanced safety and comfort. Please note that a clear aperture height of 1m is needed for the telescopic handrail.





No. of treads

Minimum Opening height (mm) Floor-to-floor height (mm)

9

710

2000 – 2250

10

780

2250 – 2500

11

820

2500 – 2750

12 860

2750 – 3000



Opening width (from) (mm)

Tread/step width (mm)

400

280

450

330

The Piccolo Premium Vertical is made-to-order and subject to a lead-time of approximately 2 weeks.

  • Manufactured to EN 14975 (certified by TÜV SÜD)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a Piccolo Premium loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Telescopic handrail for enhanced comfort and safety when climbing a loft ladder

Telescopic handrail

£55 (excl. VAT)

Drawings

Piccolo Premium Vertical loft ladder – 6000417

NBS Plus

Technical specification for the Piccolo and Piccolo Premium aluminium retractable loft ladder can be found on NBS Plus. Please select the Piccolo Premium Vertical in the ‘Accessories’ section to add it to the specification.

Premier Loft Ladders technical specifications available on NBS Plus
