Concertina loft ladder Load rating of 150kg per tread Overall Load rating. 350kg/m2 Easy installation

Picollo Premium Loft Ladder

The Piccolo Premium concertina aluminium loft ladder…

…easy to operate and perfect for very small ceiling openings

From £465 (excl. VAT)

KEY FEATURES

Material: Aluminium
Operation: Retractable ladder
Load capacity: 150kg per step
U-value: N/A
Max floor-to-ceiling height: 2.90m

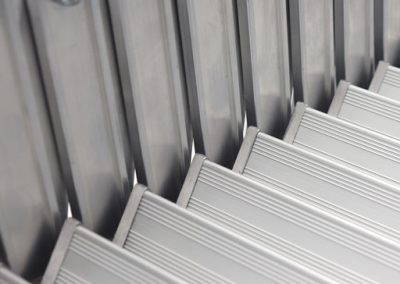

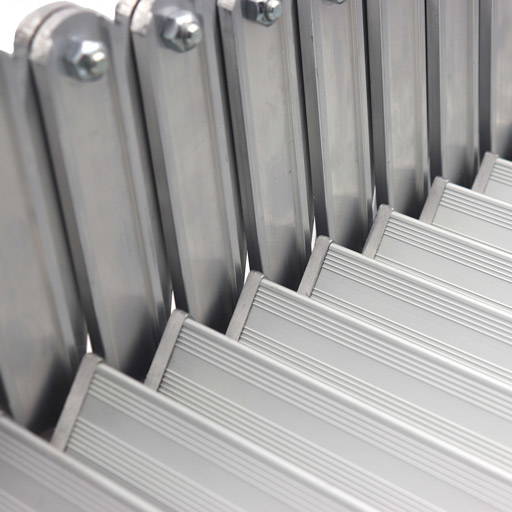

The Piccolo Premium loft ladder is easy to fit and manufactured from aluminium alloy components.  The Piccolo Premium’s compact, space-saving concertina design makes it the perfect loft ladder for very small ceiling openings or use in an existing hatch box.

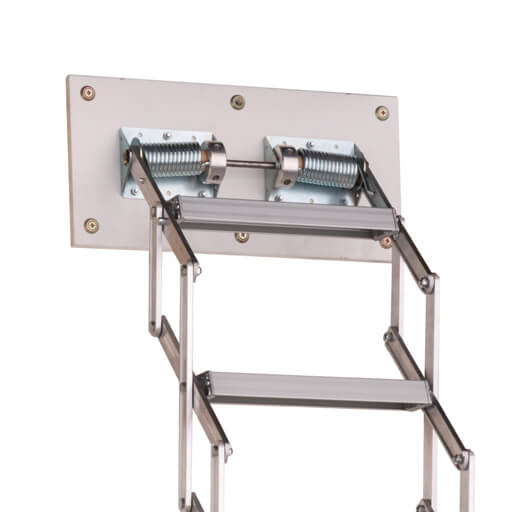

What makes this different to the standard Piccolo is the inclusion of a spring mechanism to assist with opening and retracting the loft ladder; making it very easy to operate and improving safety.

Key benefits at a glance

  • Space-saving retractable loft ladder for very small ceiling openings.
  • Lightweight and durable aluminium ladder.
  • Load capacity of 150kg per step.
  • Ease of use.
  • Easy to install.
  • Available in standard sizes or made-to-order to suit your ceiling opening dimensions.
  • Spring mechanism makes operation particularly easy and enhances safety.



  • Spring-assisted concertina (retractable) loft ladder
    • Easy to operate
    • Compact, space-saving design
  • Retractable ladder manufactured from aluminium
    • Lightweight
    • Strength
    • Durability
  • Load capacity of 150kg per step
  • Can be easily installed within an existing hatch box or directly to the ceiling timbers or masonry.
  • Available in standard sizes for floor-to-ceiling heights of 2000mm to 2900mm
  • Can be made-to-order in a range of different widths for ceiling openings as narrow as 360mm (contact us for details)
  • Optimal step / tread size for width of ceiling opening
    • Maximum stair width supplied to fit your opening width
    • Step width of 280mm (for opening widths between 360mm and 409mm) and 330mm (for opening widths of 410mm and over).
    • Step depth of 80mm
  • The Piccolo Premium can be fitted with a telescopic handrail for enhanced safety and comfort. Please refer to the accessories below.

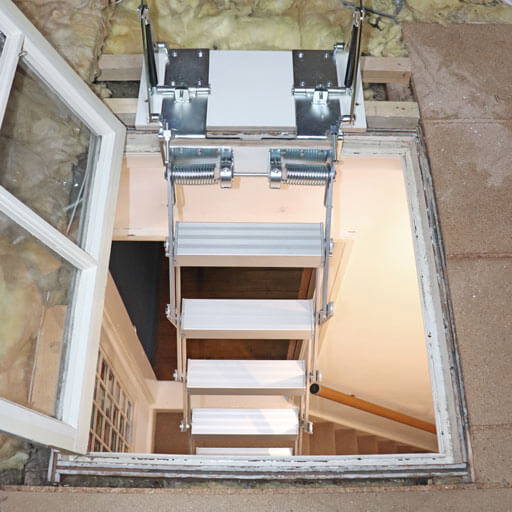

  • Optional hinge mechanism is available to allow the Piccolo Premium loft ladder to be utilised in vertical applications, such as on a mezzanine floor or in a wall hatch (contact us for details)

No. of treads

Minimum Opening length (mm) Clear room height (mm)

9

550

2000 – 2250

10

620

2250 – 2500

11

660

2500 – 2750

12 700

2750 – 3000



Opening width (from) (mm)

Tread/step width (mm)

370

280

420

330

  • Manufactured to EN 14975 (DN 4570)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a Piccolo Premium loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Spring hardware set customer manufactured ceiling hatch box and trapdoor

Spring Hardware Set

£60 (excl. VAT)

Additional tread for use with aluminium retractable loft ladders

Additional Treads

from £70 (excl. VAT)

Grab rail for use in deep hatch box

Grab Rail

£95 (excl. VAT)

Brochure

Picollo Premium loft ladder brochure

Aluminium concertina loft ladder brochure

Drawings

Picciolo and Piccolo Premium loft ladder – 6000416

NBS Plus

Technical specification for the Piccolo and Piccolo Premium aluminium retractable loft ladder can be found on NBS Plus.
