Steel Fire Rated Loft Hatch EI230 / EI260 / EI290
30 / 60 / 90-minute fire rated loft hatch…
…insulated, rubust and durable for commercial projects
£ POA
KEY FEATURES
Material: Steel
Fire resistance: 30 mins (EI230), 60 mins (EI260) or 90 mins (EI290)
U-value: 0.57 W/m2K (EI230) & 0.93 W/m2K (EI260 / EI290)

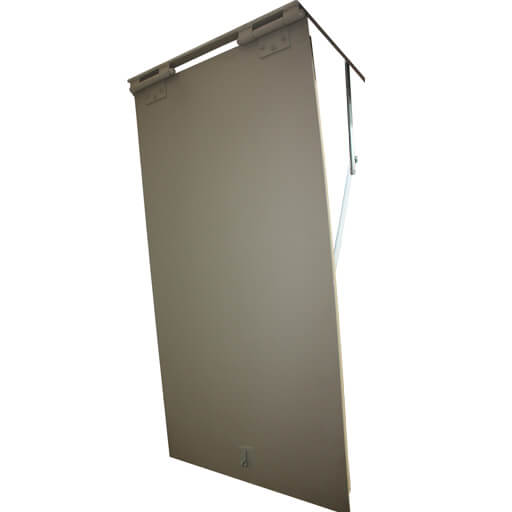

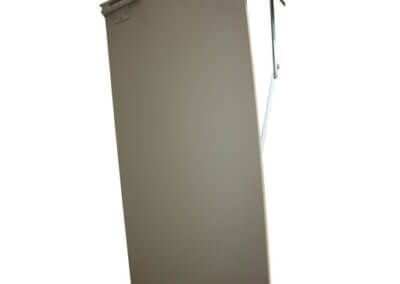

The steel fire rated loft hatch has been tested by IBS Linz for 30 minutes from below (EI230), 60 minutes from below (EI260) or 90 minutes from below (EI290). The fire resistant hatch is suitable for installation in fire retardant wooden or concrete ceilings. It is made-to-measure and supplied as a ready to fit unit. The insulated steel trapdoor provides good energy efficiency.

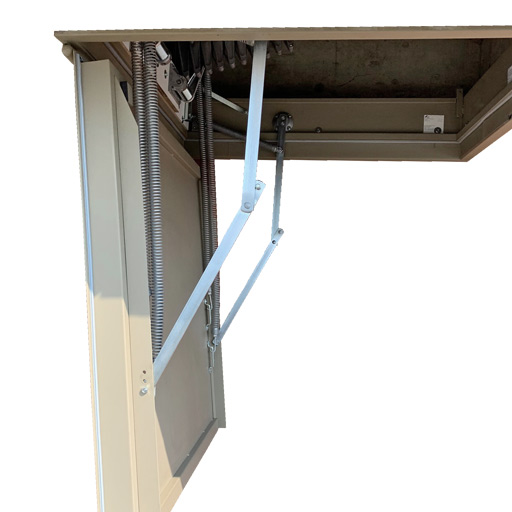

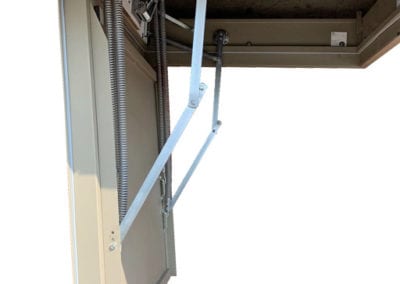

Furthermore, the steel loft hatch is fully counter-balanced and supplied with an operating pole. As such, it can be safely opened and closed from the floor, without any need for a stool or step-ladder.
Key benefits at a glance
- Fire rated for either 30 minutes, 60 minutes or 90 minutes.
- Good thermal efficiency of 0.57W/m2K for the EI230 version and 0.93 W/m2K for the EI260 & EI290 versions.
- Counter-balanced for safe and easy operation.
- Steel loft hatch painted with grey-brown primer.
- Heavy duty construction.
- Made-to-measure with a range of options and accessories.
- Fire resistant loft hatch – tested to 30 minutes (EI230), 60 minutes (EI260) and 90 minutes (EI290) from below according to EN 1363-1, EN 1634-1 and ÖNORM B 3860 by IBS Linz.
- Copy of the certificate available on request.
- Please note – the maximum aperture dimension that could be tested was 1400 mm x 800 mm.
- A deviation of 15% is permitted in structural opening length and structural opening width (always starting from the test size 1400 x 800 mm). The combination of length and width – the surface area – can be maximum 20 % larger than the test area (1400 x 800 mm).
- Spring counter-balance operation with operating pole, allowing safe and easy operation from the floor.
- Energy efficient (U-value of 0.57 W/m2K for the EI230 version and 0.93 W/m2K for the EI260 & EI290 versions, calculated by manufacturer according to DIN EN ISO 6946), reducing loss of heat and lowering energy costs.
- Made-to-order to meet your exact dimensional requirements.
- Primed, ready for on-site painting after installation.
- Supplied ready to install with a standard with a range of accessories.
N/A
Made-to-measure…
The steel fire rated loft ladder is ordered made-to-measure for opening sizes from 780 mm to 1600 mm long and from 595 mm to 1200 mm wide. The case (hatch box) height ranges from 240 mm to 1170 mm deep.
Please contact us to discuss your requirements and to arrange a quotation.
- Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty
- Tested (from below) to EN 1363-1, EN 1634-1 and ÖNORM B 3860 by IBS Linz for fire resistance of 30 minutes (EI230), 60 minutes (EI260) and 90 minutes (EI290).
- Please ensure that you maintain the fire resistance by filling the gap between the fire rated hatch box and the structural opening with a fire resistant mortar to a depth of at least 200 mm. For this product we recommend mortar class 3 according German standard DIN 18580.

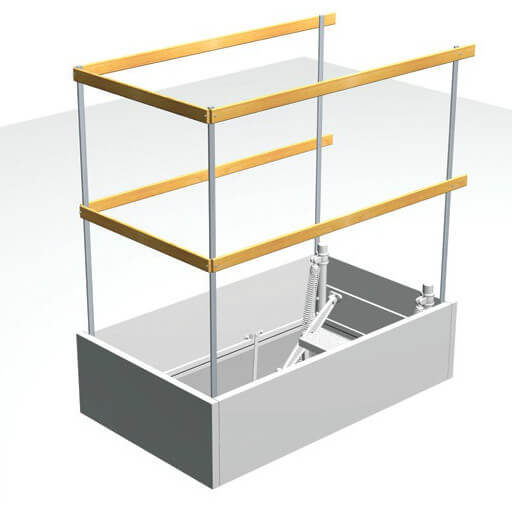

Accessories
The following accessories are only available for order with a steel fire rated loft hatch. Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.
Drawings
Please refer to the drawing (below) for further details of the steel fire rated loft hatch.
Case Studies
Secure Plant Room Access
Metcraft Engineering contacted Premier Loft Ladders looking for a way to access to a lift motor room on a multi-story car park. Access was through a large ceiling aperture, measuring 1200mm x 1200mm. Being in a public space, security was a big concern. The solution was a heavy duty steel hatch with concertina ladder.
