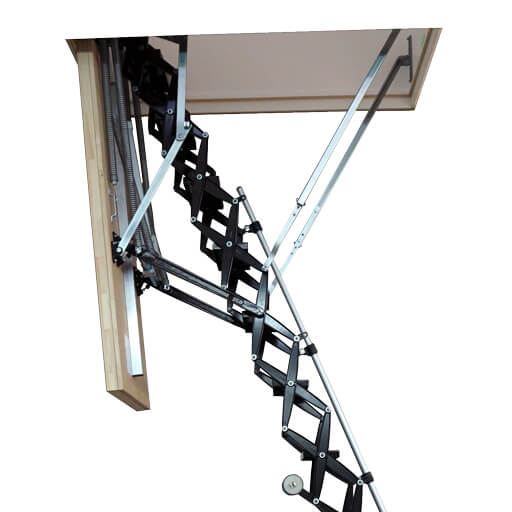

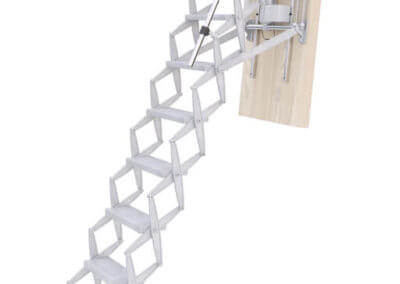

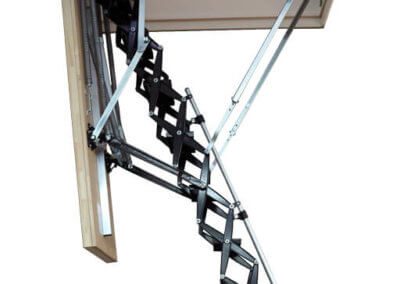

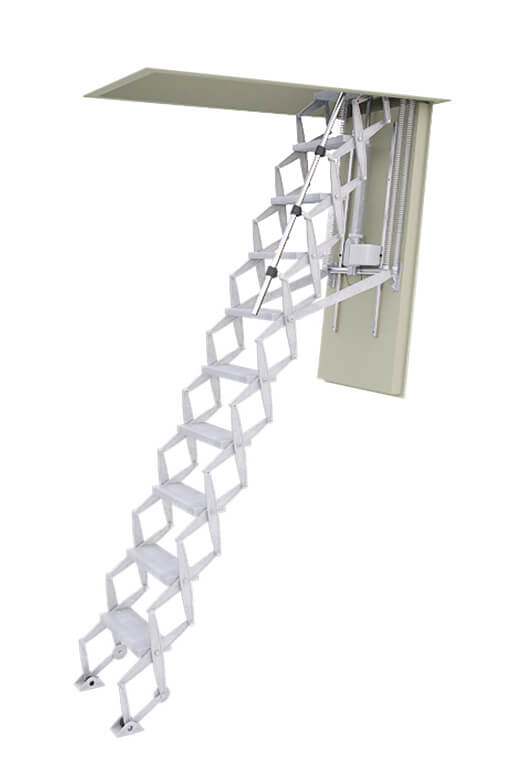

Supreme electric Loft Ladder. Electrically operated loft ladder. High strength and low noise. Premier Loft Ladders

Concertina loft ladder with hatch box Load rating of 200kg per tread Overall Load rating. 500kg/m2 Supplied with handrail as standard Electrically operated loft ladder Available made-to-measure Thermally insulated. U value = 0.58W/m2K Class 4 certified airtight seal

Supreme Electric Loft Ladder

The Supreme Electric loft ladder…

…strength, safety and convenience

From £3,630 (excl. VAT)

Including delivery to any UK mainland address

KEY FEATURES

Material: Pressure die-cast aluminium
Operation: Electric retractable ladder
Load capacity: 200kg per step
U-value: 0.58 W/m2K
Max floor-to-ceiling height: 4.6m

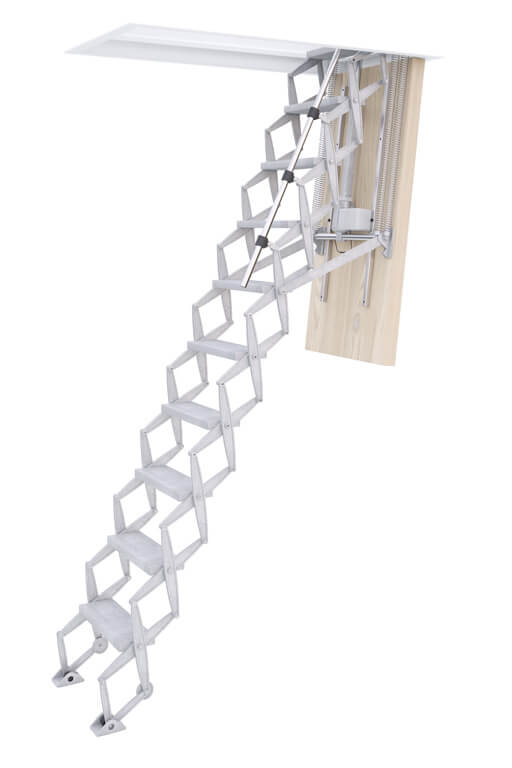

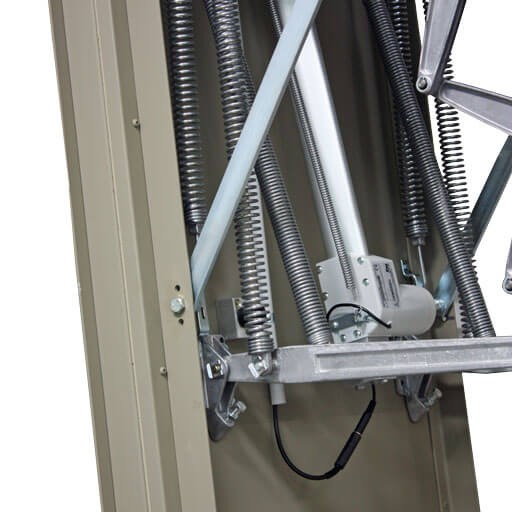

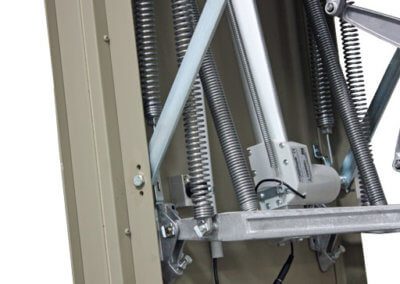

The Supreme Electric loft ladder is manufactured from high strength die-cast aluminium alloy components supplied complete with a laminated wooden hatch box and a 62mm thick sandwich construction insulated trapdoor.  The low-noise electric loft ladder is controlled via a one-button control unit or optional infrared remote control, which opens and closes the ladder effortlessly in just a few seconds.  It also features an automatic limit and safety stop and has an emergency power supply.

Large steps and pre-assembled telescopic handrail offer comfort, safety and ease of egress.



Key benefits at a glance

  • Ease of operation and convenience.
  • Low-noise electric motor with emergency back-up power supply.
  • High strength, heavy duty.
  • Load capacity of 200kg per step.
  • High energy efficiency of 0.58 W/m2K.
  • Suitable for very high ceilings.
  • Large steps for comfort and safety.
  • Available in standard sizes or made-to-measure with a wide range of options and accessories.
  • Electric retractable (concertina) loft ladder
    • Easy to operate
    • Fully automatic operation
    • Convenience
  • Retractable ladder manufactured from pressure die-cast aluminium
    • Lightweight
    • Strength
    • Stability
    • Durability
  • High strength, heavy duty loft ladder, with a load capacity of 200kg per step

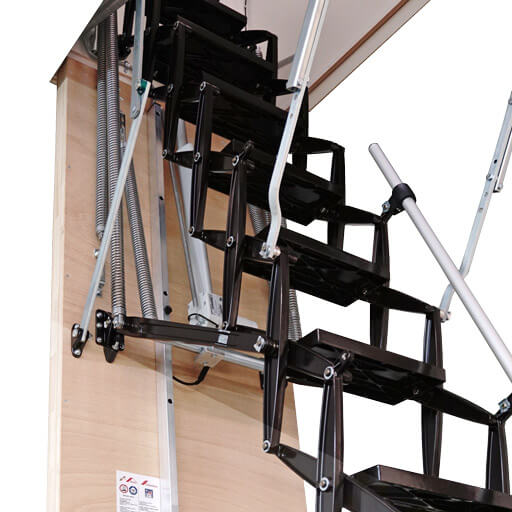

  • Supplied assembled in a wooden hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to the underside
    • Standard hatch box height of 240mm, but can be specified for heights of up to 1170mm
  • High energy efficiency (U-value of 0.58 W/m2K, certified by IFT Rosenheim according to DIN ISO 12567-1)
    • Reducing loss of heat and lowering energy costs
  • Airtight (Class 4 air permeability certified by IFT Rosenheim according to DIN EN 12207 / 12114)
  • Battery back-up power supply, as well as manual override (allowing operation without electrical supply)
  • Available in standard hatch sizes for floor-to-ceiling heights between 2200mm and 2790mm
  • Can be made-to-measure to meet your exact dimensional requirements, for floor-to-ceiling heights of up to 4600mm (contact us for details)

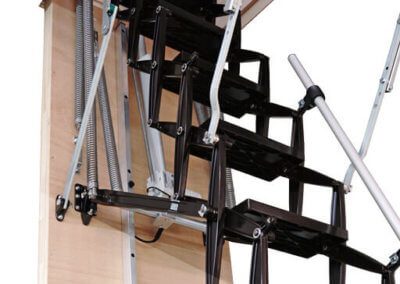

  • Large steps / treads for improved safety, comfort and ease of egress
    • Maximum stair width supplied to fit your floor-to-ceiling height and opening width
    • Step width ranges from 250mm to 580mm (subject to aperture size and ceiling height).
    • Step depth from 140mm (for steps up to 380mm wide) to 160mm (for steps between 430mm and 580mm wide)
  • Non-slip feet with rubber pads to protect the floor
  • Available with a wide range of accessories

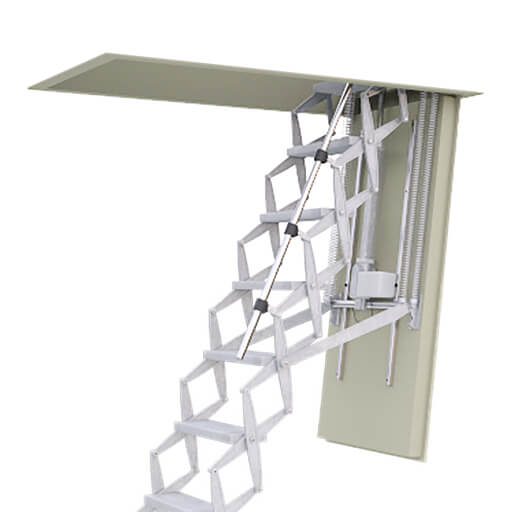

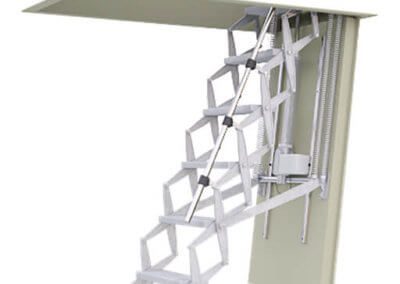

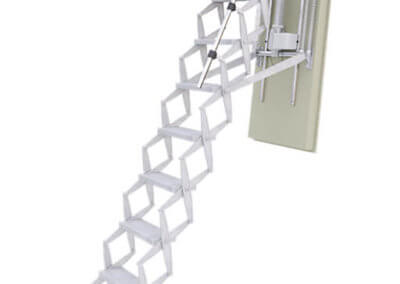

  • Can be specified to meet F30, F60 or F90 fire resistance (visit our Fire Resistant Loft Ladders page for details of the full range of ladders available).
  • Available with weatherproof roof hatch (contact us for details).
  • Optional infrared remote control (see accessories, below).

The Supreme Electric heavy duty concertina loft ladder is available in the following standard sizes that can be ordered online.

Clear room height (mm)

Opening length x width (mm) Case height (mm)

2200 – 2790

1200 x 700

240

2200 – 2790

1300 x 700

240

2200 – 2790 1400 x 700

240



Available made-to-measure…

The Supreme Electric loft ladder can also be ordered made-to-measure for floor-to-ceiling heights from 1.85 m to 4.6 m, and opening sizes from as small as 1100 mm long x 630 mm wide. Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and to arrange a quotation.

CSS PLL Supreme Electric

  • Manufactured and tested to EN 14975 (certified by TÜV SÜD)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty
  • Electric motor and standby batteries have a manufacturer’s 2-year warranty

The Supreme Electric loft ladder is available as a BIM model/object from the NBS National BIM library in IFC and Revit format…

Alternatively, please click here to view our full range of available BIM models.

Video



Accessories

The following accessories are only available for order with a loft ladder. Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

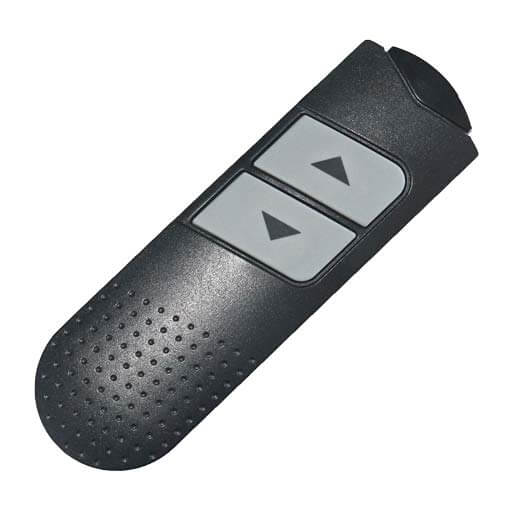

Infrared remote control for Supreme Electric Loft Ladder. Premier Loft Ladders

Infrared remote control

£165 (excl. VAT)

White wooden cover strips for wooden loft ladder hatch boxes

White Wooden Cover Strip

£34 (excl. VAT)

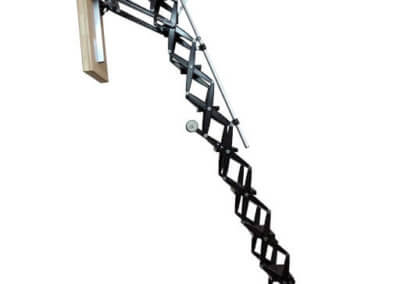

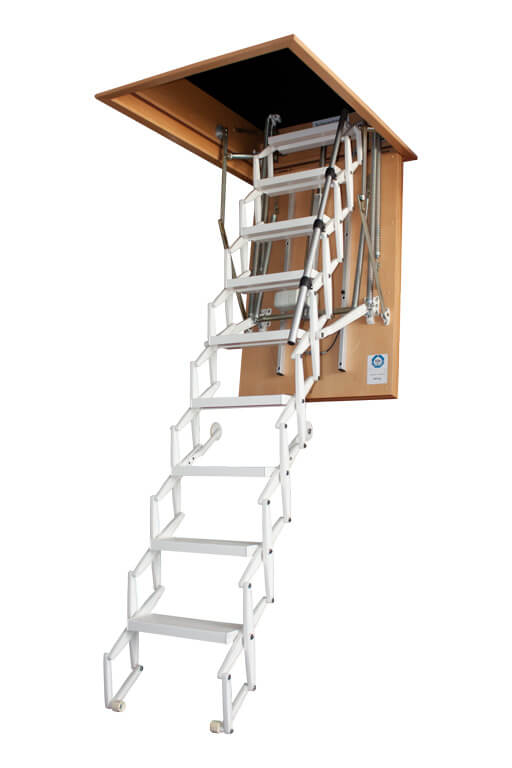

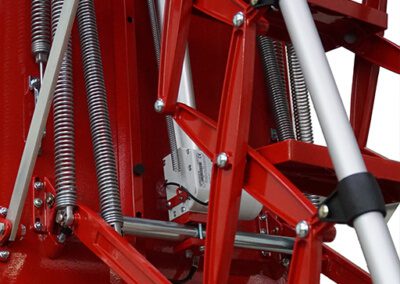

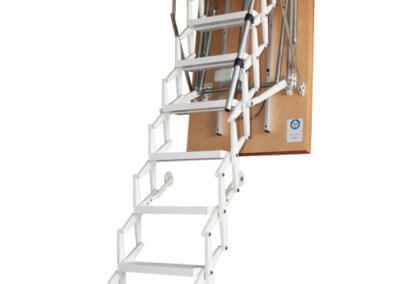

Retractable aluminium loft ladder with RAL colour powder coat finish

Retractable Ladder Powder-Coated in RAL Colour

£ POA

Drawings

Supreme electric loft ladder with wooden hatch box and insulated trapdoor – 6000455B.

Data Sheet

Supreme Electric Data Sheet – DS-SUP-ELEC

NBS Source

Technical specification for the Supreme Electric heavy duty retractable loft ladder can be found on NBS Source.

NBS Source Partner. Premier Loft Ladders products can be found on NBS Source

Case Study

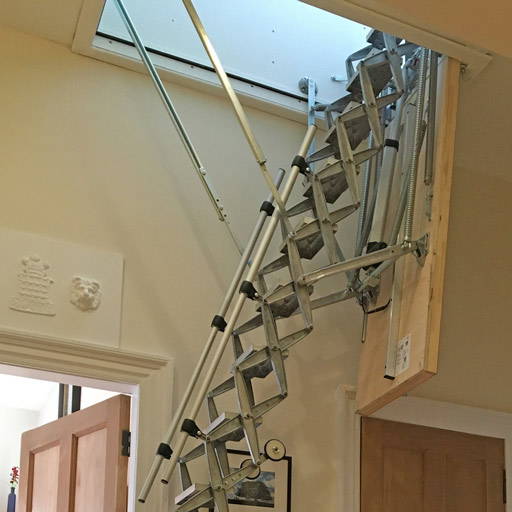

Installed Supreme Electric Ladder

The ‘Supreme’ Electric ladder lives up to its name

Electric loft ladders offer a superb solution for easy access to loft spaces. Especially for rooms with a very high ceiling, such as this property in Edinburgh. Read our case study to learn about how the Supreme Electric ladder lived up to its name.
