Designo Insulated Loft Hatch

The Designo loft hatch…

…sets the standard in energy efficiency, long-lasting quality and ease-of-installation

From £455 (excl. VAT)

KEY FEATURES

Material: Wood
U-value: 0.60 W/m2K
Airtight Seal: Class 4 (certified)

The Designo insulated loft hatch offers beautiful aesthetics with quality construction and high thermal insulation. It offers excellent energy efficiency thanks to a highly insulated trapdoor with 6-point locking mechanism, which provides an airtight seal. It is also fitted with the patented WDL sealing and insulation tape. As a result, the Designo loft hatch achieves a perfect seal with the building and is quicker to install.



Key benefits at a glance

  • High energy efficiency of 0.60 W/m2K.
  • 6-point locking trapdoor for an airtight seal (class 4 certified) when closed.

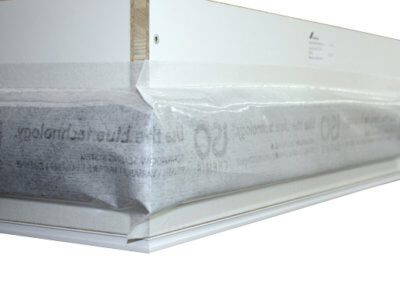

  • WDL insulation and sealing tape for airtight seal with the building.

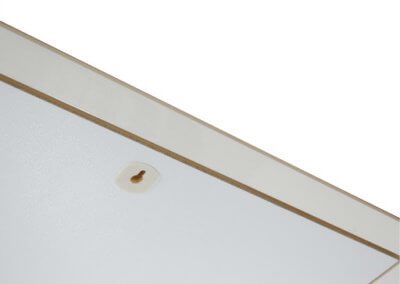

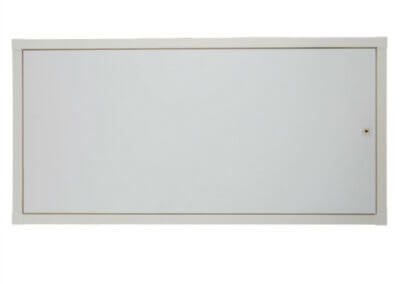

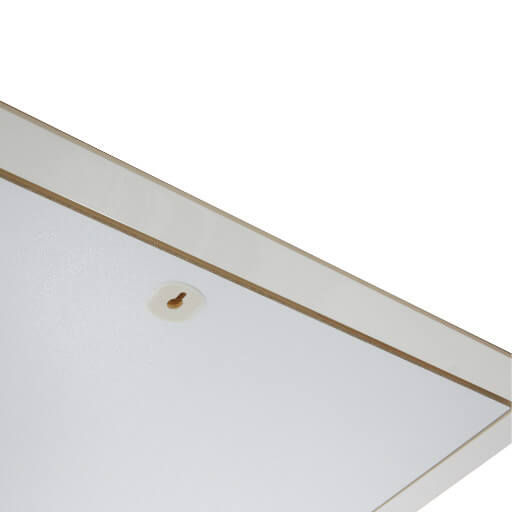

  • Concealed hinge and discrete operating latch for clean and modern finish when closed.
  • Made-to-measure with a range of options and accessories.
  • Insulated loft hatch
  • Trapdoor supplied with a white finish to both sides

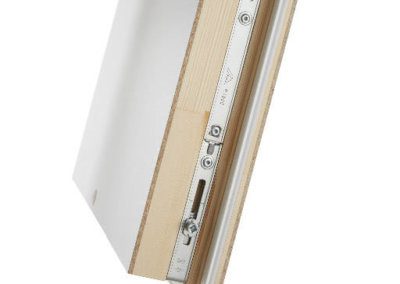

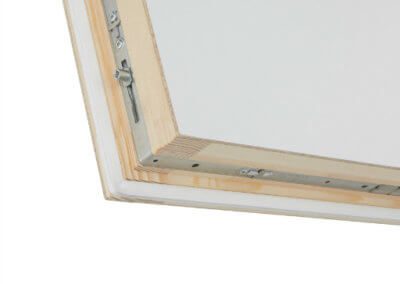

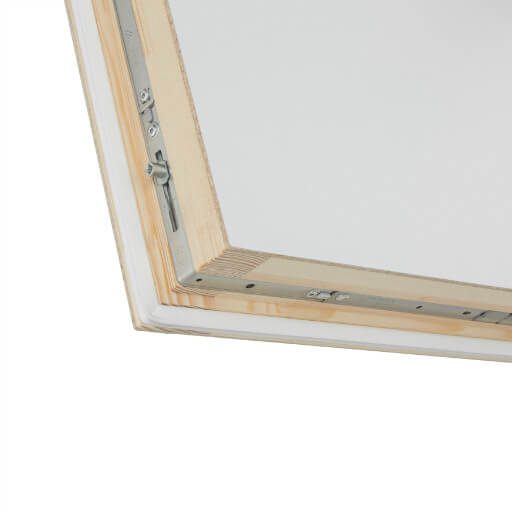

  • 6-point locking mechanism
  • Pre-drilled holes in hatch box for quick and easy installation
  • High energy efficiency (U-value of 0.60 W/m2K, calculated by manufacturer according to DIN EN ISO 6946), reducing loss of heat and lowering energy costs.
  • Class 4 air permeability certified
  • Can be made-to-order to meet your exact dimensional requirements
  • Supplied ready to install with a standard with a range of accessories

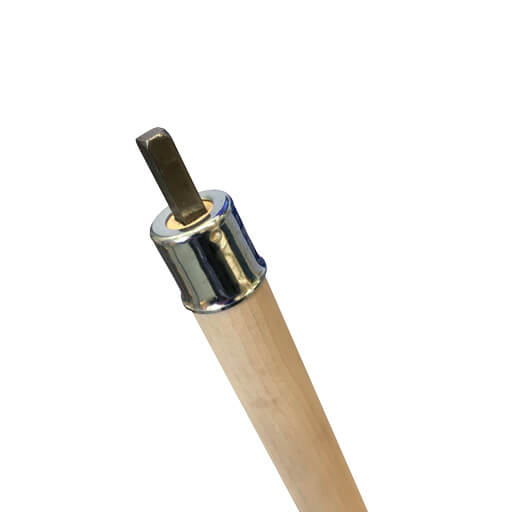

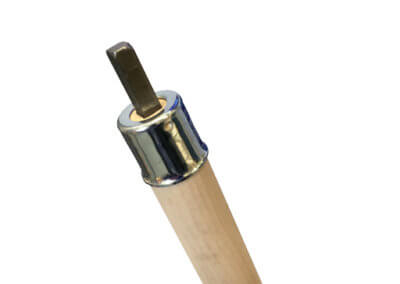

  • Operating rod with square shaft
  • Snap-on cover strips in white



  • Can be ordered to the same specification as the passive house certified Designo loft ladder, which includes a thicker WDL tape and minimum case height of 290mm. Please contact us for full details.

Made-to-measure…

The Designo insulated loft hatch is ordered made-to-measure. Opening sizes range from 750mm to 1600mm long and from 550mm to 800mm wide. The case (hatch box) height ranges from 185mm to 710mm deep.

Please contact us to discuss your requirements and to arrange a quotation.

  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

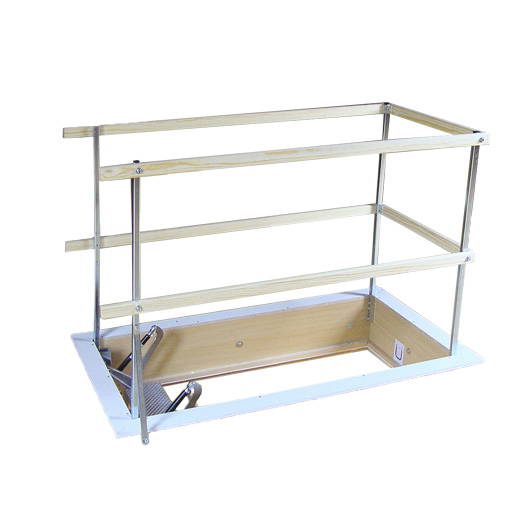

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Drawings

 Please refer to the Designo loft ladder drawing (below) for details of the insulated loft hatch.

Designo 3 part wooden – 6000392
