Fire Resistant loft ladders

Already established as offering a market-leading range of wooden loft ladders and retractable aluminium stairways, Premier Loft Ladders offer a comprehensive range of stairways with a fire rated loft hatch for industrial, commercial and domestic applications.



Our product range includes fire rated versions of both precision-engineered retractable aluminium and folding wooden loft ladders. These lead the field in design, technology, energy efficiency and quality. All of which are manufactured to EN 14975 and fire resistant to DIN 4102. Our range of fire rated loft ladders cover 30 minutes from below, 30 minutes from below and above, 60 minutes from below and 90 minutes from below.

Supreme F30 Wooden Hatch

  • Fire resistant loft ladder and hatch box – certified to 30 minutes (F30)
  • Ease of operation (operation force less than 3kg)
  • High strength, heavy duty loft ladder, with a load capacity of 200kg per step
  • High energy efficiency of 0.80 W/m2K
  • Can be made-to-order to meet your exact specification, with a wide-range of accessories
  • Available with a low-noise electric motor for the ultimate in convenience

Prices starting from £1,250 (excl. VAT)

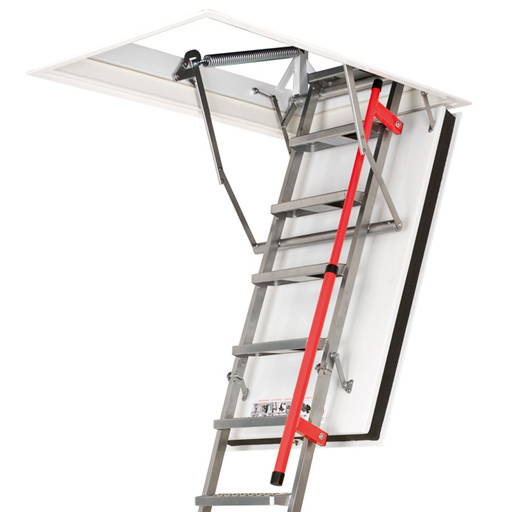

Supreme F30 Steel Hatch

  • Fire resistant loft ladder and hatch box – certified to 30 minutes (F30)
  • Ease of operation (operation force less than 3kg)
  • High strength, heavy duty loft ladder, with a load capacity of 200kg per step
  • High energy efficiency of 0.80 W/m2K
  • Made-to-order to meet your exact specification, with a wide-range of accessories
  • Available with a low-noise electric motor for the ultimate in convenience

£ POA

Supreme F60/90 Steel Hatch

  • Fire resistant loft ladder and hatch box – certified to either 60 minutes (F60) or 90 minutes (F90)
  • Ease of operation (operation force less than 3kg)
  • High strength, heavy duty loft ladder, with a load capacity of 200kg per step
  • Good energy efficiency of 0.93 W/m2K
  • Made-to-order to meet your exact specification, with a wide-range of accessories
  • Available with a low-noise electric motor for the ultimate in convenience

£ POA

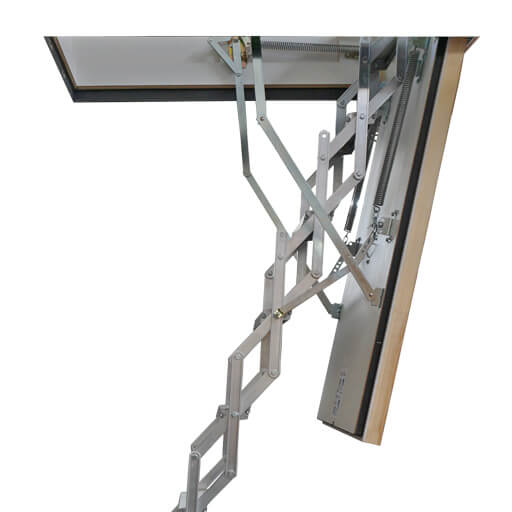

MiniLine F30 / F30 Plus / F60

  • Fire resistant loft ladder and hatch box – certified to either 30 minutes (F30 / F30 Plus) or 60 minutes (F60)
  • Designed for use in small ceiling openings
  • Concertina aluminium loft ladder
  • Load capacity of 150kg per step
  • Good energy efficiency of 0.92 W/m2K
  • Available in standard sizes or made-to-order to meet your exact specification

Prices starting from £955 (excl. VAT)

ProfiLine F30 / F30 Plus / F60

  • Fire resistant loft ladder and hatch box – certified to either 30 minutes (F30 / F30 Plus) or 60 minutes (F60)
  • Traditional style 3 part folding wooden loft ladder
  • Load capacity of 150kg per step
  • Good energy efficiency of 0.92 W/m2K
  • Step depth of 80mm with anti-slip profile
  • Available in standard sizes or made-to-order to meet your exact specification

Prices starting from £620 (excl. VAT)

Prices starting from £955 (excl. VAT)

Prices starting from £620 (excl. VAT)

Certification



F30, F30 Plus, F60 and F90 fire rated loft ladders are tested to DIN 4102 Part 2 by either MPA Braunschweig or MPA Stuttgart. Copies of the certificates are available upon request.

Fire rated loft hatch construction



Supreme F30, F60 and F90 steel hatch box construction:

1.5 mm thick steel hatch box with a steel trapdoor. The trapdoor is made from 2 layers of 1.5 mm thick sheet steel infilled with 38 mm of mineral wool to give a 30 minute fire resistance or 75 mm of mineral wool to give a 90 minute fire resistance. There is a 29 mm wide lip to the bottom of the lining around the external edge, which is designed to butt up against the ceiling to help prevent flame and smoke ingress. Similarly, there is also a lip to the bottom of the steel trapdoor, which extends to within 15 mm of the lip on the lining.

For use in reinforced concrete ceilings from 180 mm thick.

Supreme F30 wooden hatch box construction:

Wooden hatch box and trapdoor are made from fire-resistant B1 chipboard. Suitable for use in fire retardant concrete ceilings.

MiniLine F30, F30 Plus and F60 wooden hatch box construction:

Wooden hatch box and trapdoor are made from fire-resistant B1 chipboard. The MiniLine F30 and F60 fire rated loft hatch and ladders are suitable for use in fire retardant wooden beams and concrete ceilings. MiniLine F30 Plus fire rated loft hatch and ladder is only suitable for use in fire retardant concrete ceilings.

ProfiLine F30, F30 Plus and F60 wooden hatch box construction:

Wooden hatch box and trapdoor are made from fire-resistant B1 chipboard. The ProfiLine F30 and F60 fire rated loft hatch and ladders are suitable for use in fire retardant wooden beams and concrete ceilings. ProfiLine F30 Plus fire rated loft hatch and ladder is only suitable for use in fire retardant concrete ceilings.

Important – Please ensure that you maintain the fire resistance by filling the gap between the fire rated hatch box and the structural opening with a fire resistant mortar to a depth of at least 180 mm.

Application solution guide



Visit our application solution guide for useful advice and important considerations for choosing fire resistant loft ladders.
