Vertical loft ladders for installation on mezzanines or in wall hatches…
Vertical loft ladders are specially modified retractable ladders that stow in a vertical position. They are designed for gaining access into lofts, onto mezzanine floors or even into plant/boiler rooms. They provide an excellent space-saving solution for this challenging application.
When not needed, our vertical loft ladders retract away. As a result, they can be positioned neatly behind a door or wall hatch, with minimal protrusion into the space behind. A spring-assisted mechanism allows for safe and easy operation when the ladder is needed.

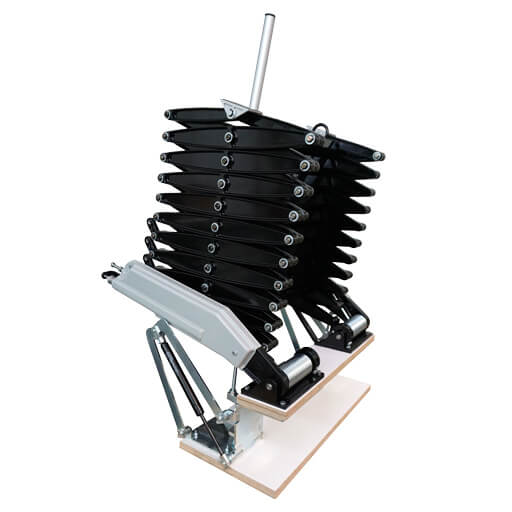

Elite Vertical
- The ideal ladder for use on a mezzanine
- Suitable for small wall openings
- Easy to install
- Ease of operation (operation force less than 3 kg)
- High strength, heavy duty loft ladder, with a load capacity of 200 kg per step
- Large steps/treads for safety and convenience
Supreme Vertical
- Specifically developed for vertical installation
- Supplied assembled with an insulated hatch
- Ease of operation
- High strength, heavy duty ladder, with a load capacity of 200 kg per step
- Highly insulated (U value 0.58 W/m2K)
- Can be made-to-order to meet your exact specification

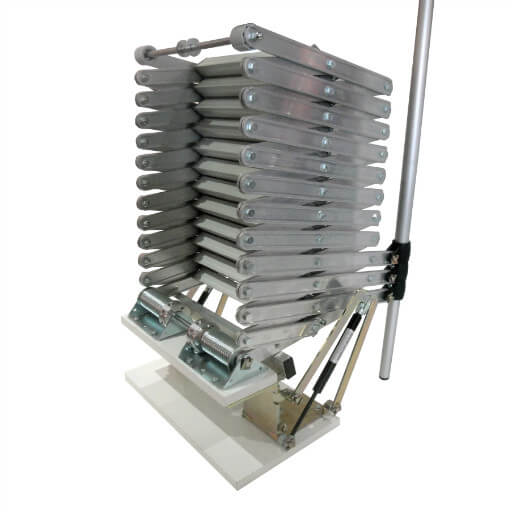

Piccolo Premium Vertical
- Ideal for very wall small openings
- Vertical installation version of the Piccolo Premium retractable loft ladder
- Easy to install on a mezzanine or behind an existing door
- Easy to operate
- Load capacity of 150 kg per step
Retractable vertical loft ladders
Our product range includes the Supreme Vertical loft ladder, which is a heavy duty (200kg load capacity per step) retractable aluminium loft ladder. The Supreme Vertical loft ladder features an insulated hatch box and door to help keep warm air in the building and minimise energy costs. As the door is opened, the spring assisted ladder gently unfolds onto the floor below.
The Elite vertical loft ladder features the same high performance heavy duty loft ladder as the Supreme Vertical, but is supplied without the hatch box. Therefore, it can be conveniently placed behind an existing door, or discretely positioned on a mezzanine floor.
Finally, the Piccolo Premium retractable loft ladder completes our vertical loft ladder offering. The Piccolo Premium is a lighter-duty version of the Elite, but it’s compact design makes it perfect for very narrow openings.
Counter-balanced for safe operation
All of our vertical concertina loft ladders feature a spring counter-balance system. This is particularly important for this type of ladder. This is because it ensures the person using the ladder maintains full control throughout. Also, it stops the ladder falling down under its own weight.
Another important safety feature is the gas-strut dampening hinge. This assists with rotating the mezzanine ladder to-and-from the stowed position. Again, it reduces the amount of effort needed to use the ladder.
Both of these features can be seen in the video below.
Case Studies
Elite Vertical loft ladder proves to be the perfect solution for a New Build project in France
Jill Ranford and Patrick Taggart are the proud owners of a beautiful new build home in Southern France. The main bedroom features a vaulted ceiling with access to a loft via a wall hatch located 2.7m up from the floor. Therefore a mezzanine ladder was required that could be easily operated at that height and could be folded behind the wall hatch door without taking up too much loft space. The Elite Vertical Loft Ladder proved to be the perfect solution for Jill and Patrick’s needs.
“The Elite is now installed in our loft doorway and performs beautifully. It is so unlike cheap loft ladders that I’ve come across in the past”
Jill Ranford
Vertical wall access hatch and ladder
The owners of a modern home had no means of access to the loft space in their property. They needed a loft ladder with a vertical wall access hatch, such that they could make use of this otherwise wasted space. Also, it was important that the ladder was of particularly high-quality and would last a long-time. The Supreme Vertical offered the perfect solution.
“Customers are always delighted and amazed at how a ladder of this size and weight is so light and easy to use.”
Steve, Artisan Loft Ladders

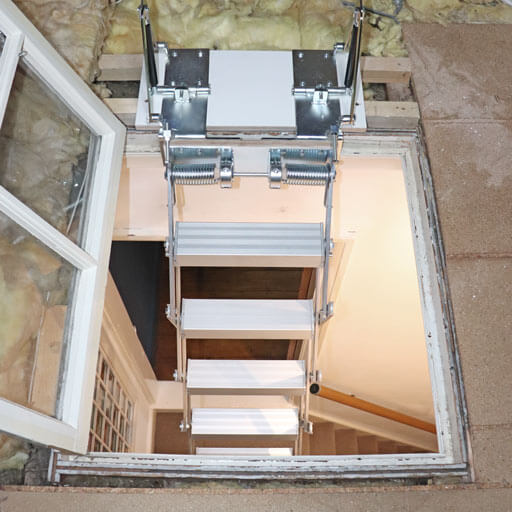

Piccolo Premium Vertical loft ladder offers innovative access via glass loft hatch
The glass loft hatch in this Victorian family home provides a valuable source of natural light. However, it is also the only means of access to the loft. The home owners wanted a loft ladder that maintained the period features, did not block the light and could fit within the existing small opening. Therefore, finding the right loft ladder was very difficult.
A compact loft ladder that could be stowed away from the opening was needed. The Piccolo Premium Vertical loft ladder offered the perfect solution.
Brochure
An overview of our loft ladder range for vertical wall openings and mezzanine floors.
Vertical loft ladder brochure
