Designo insulated loft door from Premier Loft Ladders

Easy installation Thermally insulated. U value = 0.60W/m2K

Designo Loft Door

Highly Insulated loft eaves door…

…sets the standard in long-lasting quality and design

From £430 (excl. VAT)

Including delivery to any UK mainland address

KEY FEATURES

Material: Wood
U-value: 0.60 W/m2K
Size: Standard sizes

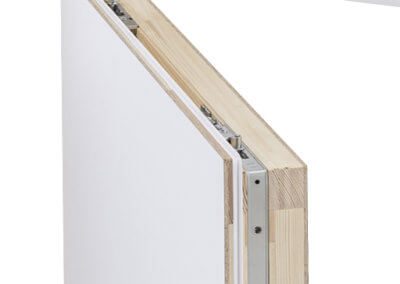

The Designo insulated loft door offers the perfect solution for convenient access to cold loft eaves. It offers excellent thermal insulation (U-value of 0.60 W/m2K) and a circumferential seal with multi-point latching system. In addition, concealed hinges and durable white coating to the door and hatch box provide an attractive finish.



Key benefits at a glance

  • High energy efficiency (U-value of 0.60 W/m2K).
  • 4-point locking door for a tight seal when closed.
  • Concealed hinge for a clean and modern finish.
  • WDL insulation and sealing tape for airtight seal with the building.
  • Available in a range of standard sizes.
  • Insulated loft eaves door.
  • Door supplied with a white finish to both sides.
  • Hatch box depths from 140mm to 250mm.
  • 4-point locking mechanism.
  • High energy efficiency (U-value of 0.60 W/m2K, calculated by manufacturer according to DIN EN ISO 6946), reducing loss of heat and lowering energy costs.
  • Circumferential seal.
  • Door can be hinged on the left or right.
  • Available in standard sizes (see ‘Dimensions’ tab).
  • Supplied ready to install.

N/A

Available in the following standard sizes:

Opening height (mm)

Opening width (mm) Frame depth (mm)

700

600

140

800

600

140

700

700

140

800

700

140

Please contact us to discuss your requirements and to arrange a quotation.

The loft door can be hinged on either the left or right side (must be specified when ordering).

  • Supplied with a Roto manufacturer’s 2-year full warranty and 10-year parts warranty.

Drawings

Designo Loft Door – 8000102A

NBS Source

Technical specification and BIM object for the Designo insulated loft eaves door can be found on NBS Source.

NBS Source Partner. Premier Loft Ladders products can be found on NBS Source
