Fire resistant wooden loft ladder with insulated hatch. ProfiLine from Premier Loft Ladders

Wooden loft ladder and hatch box Load rating of 150kg per tread Supplied with handrail as standard Available made-to-measure Thermally insulated. U value = 0.92W/m2K Class 4 certified airtight seal EI(2)30 Fire rated loft ladder. 30 minutes from below. F30 Plus Fire rated loft ladder. 30 minutes from below and above EI(2)60 Fire rated loft ladder. 60 minutes from below.

ProfiLine Fire Resistant Wooden Loft Ladder

The ProfiLine EI230 / F30 Plus / EI260 fire resistant wooden loft ladder…

…combining traditional styling and fire resistance

From £855 (excl. VAT)

Including delivery to any UK mainland address

KEY FEATURES

Material: Wood
Operation: 3-part folding
Fire resistance: EI230, F30 Plus and EI260
Load capacity: 150 kg per step
U-value: 0.92 W/m2K
Max floor-to-ceiling height: 3.56 m

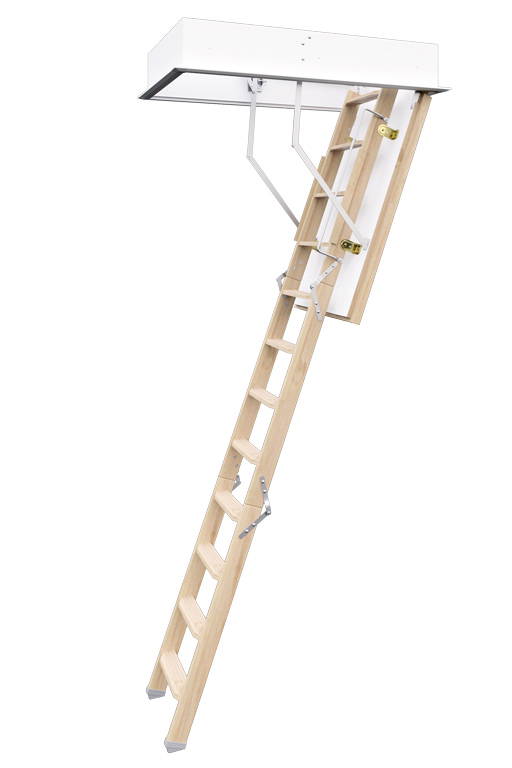

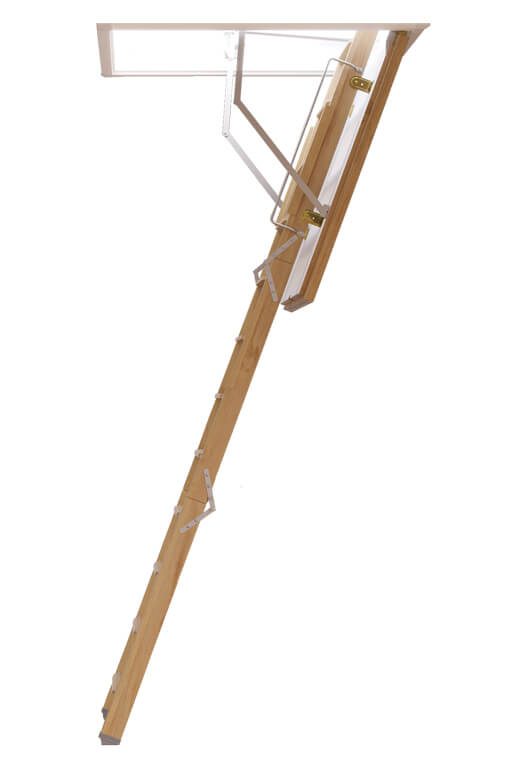

The ProfiLine fire resistant wooden loft ladder EI230 / F30 Plus* / EI260 offers an attractive design and is available in standard or made-to-measure sizes. It is supplied as a ready to fit unit, consisting of a 3-part folding wooden ladder contained within, and attached to, a wooden hatch box and an insulated trapdoor.

The ProfiLine Loft Ladder is tested by IBS Linz for 30 minutes (EI230) and 60 minutes (EI260) from below for installation in either wood-beamed ceilings or concrete ceilings. For concrete ceilings only, the ProfiLine is also tested by MPA Braunschweig for 30 minutes from below and above (F30 Plus)*.



Key benefits at a glance

  • Traditional wooden loft ladder design.
  • Load capacity of 150 kg per step.
  • Good energy efficiency of 0.92 W/m2K.
  • Wide steps with anti-slip profile for comfort and safety.
  • Hatch trap door finished in white on both sides.
  • Certified fire resistant to EI230, F30 Plus* or EI260.
  • Available in standard sizes or made-to-order with a range of options and accessories.



* Please note: The F30 Plus is currently going through re-certification and will not be available until mid-2025.

  • 3 part folding wooden loft ladder with adjustable tilt
  • Traditional wooden loft ladder design
  • Load capacity of 150 kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • Standard hatch box height of 220 mm, but can be specified for heights of up to 630 mm
    • Double-bolt closure mechanism
  • Fire resistant loft ladder and hatch box – available certified to 30 minutes (EI230) or 60 minutes (EI260) from below, or 30 minutes from below and above (F30 Plus)*.
  • Energy efficient (U-value of 0.92 W/m2K, certified according to DIN ISO 12567-1 by IFT Rosenheim)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Available in standard hatch sizes for floor-to-ceiling heights between 2340 mm and 2760 mm
  • Can be made-to-order to meet your exact dimensional requirements, for floor-to-ceiling heights of up to 3560 mm (contact us for details)
  • Wide steps / treads with anti-slip profile for comfort and safety
    • Step width from 330 mm
    • Step depth from 80 mm
  • Supplied ready to install with a standard with a range of accessories
    • Handrail for safety
    • Protective feet
    • Snap-on cover strips in white
    • Mounting screws



* Please note: The F30 Plus is currently going through re-certification and will not be available until mid-2025.

  • Can also be supplied as a 2-part sliding fire resistant wooden loft ladder, suitable for floor-to-ceiling heights up to 3340 mm. Please contact us for details.

The ProfiLine EI230 / F30 Plus / F60 loft ladder is available in the following standard sizes that can be ordered on line.

Clear room height (mm)

Opening length x width (mm) Case height (mm)

2340 – 2760

1200 x 600

220

2340 – 2760

1200 x 700

220

2340 – 2760

1300 x 700

220

2340 – 2760 1400 x 700

220



Available made-to-measure…

The ProfiLine fire rated loft ladder can also be ordered made-to-measure for floor-to-ceiling heights from 1.97 m to 3.56 m, and opening sizes from 1000 mm long x 550 mm wide. Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and to arrange a quotation.

CSS PLL Profiline

  • Manufactured to EN 14975 (DN 4570).
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty.
  • Tested according to EN 1363, EN 1634 and ÖNORM 3860 by IBS Linz for 30 minutes (EI230) and 60 minutes (EI260) from below .
  • Tested according to DIN 4102-2 by MPA Braunschweig for fire resistance of 30 minutes from below and above (F30 Plus) for use in concrete ceilings.
  • Please ensure that you maintain the fire resistance by filling the gap between the fire rated hatch box and the structural opening with a fire resistant mortar to a depth of at least 200 mm. For this product we recommend mortar class 3 according German standard DIN 18580.

The ProfiLine fire resistant wooden loft ladder is available as a BIM model/object from the NBS National BIM library in IFC and Revit format…

Alternatively, please click here to view our full range of available BIM models.

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Loft Ladder installation and assembly aid

Installation / Assembly Aid

£32 (excl. VAT)

Security lock for fire-rated loft ladders with a wooden hatch - MiniLine, ProfiLine and Supreme F30 Wooden

Security Lock

£145 (excl. VAT)

Drawings

ProfiLine  F30, F30 Plus, F60 loft ladder drawing – 6000463A

Data Sheet

ProfiLine Data Sheet – DS-PRO

NBS Source

Technical specification for the ProfiLine fire resistant wooden loft ladder can be found on NBS Source.

NBS Source Partner. Premier Loft Ladders products can be found on NBS Source
