Quadro Wooden Loft Ladder

The Quadro wooden loft ladder…

…energy efficient, made-to-measure and easy to install

From £495 (excl. VAT)

KEY FEATURES

Material: Wood
Operation: 3-part folding
Load capacity: 150kg per step
U-value: 0.77 W/m2K
Max floor-to-ceiling height: 3.2m

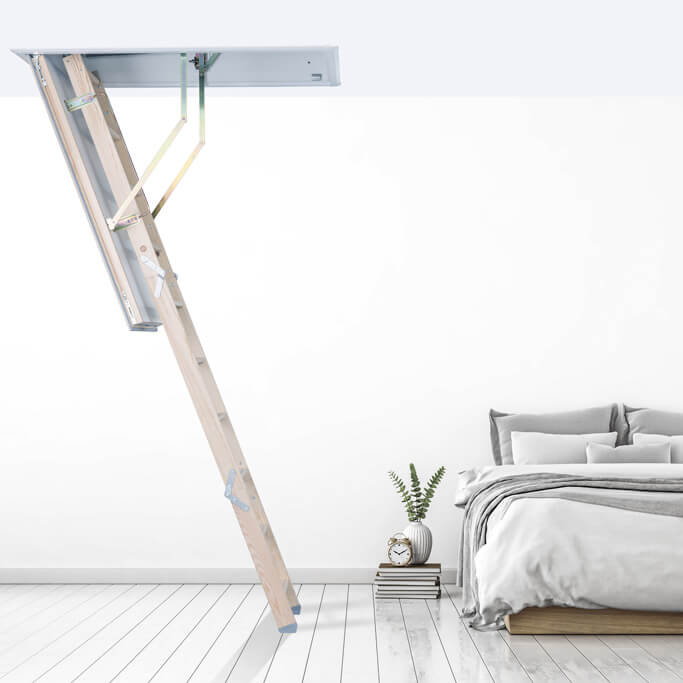

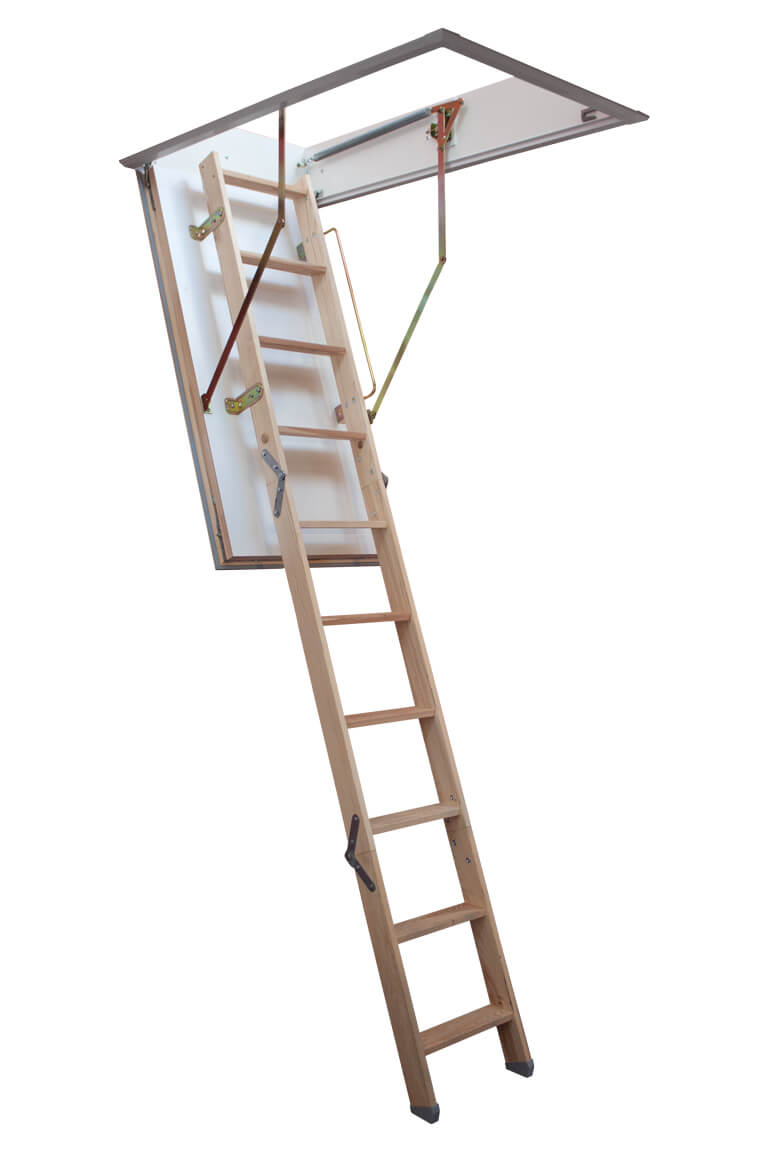

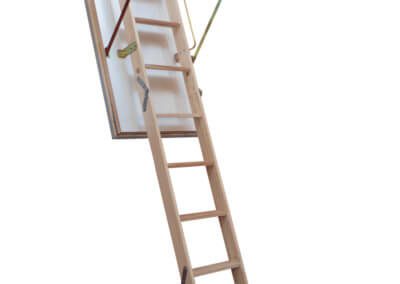

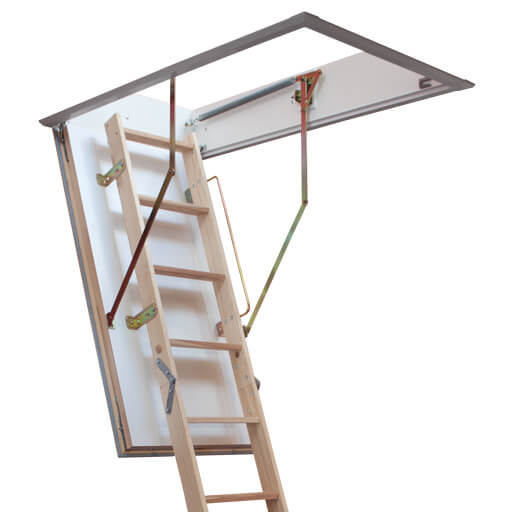

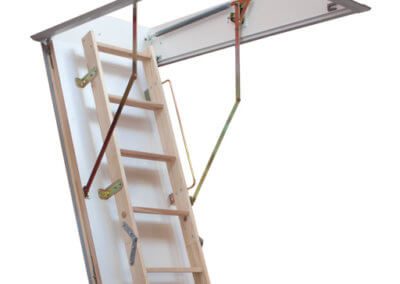

The Quadro wooden loft ladder is the solution when ‘standard’ is simply not good enough. It is supplied as an easy to fit, made-to-measure unit. The 3-part folding wooden ladder is contained within, and attached to, a laminated wooden hatch box and an insulated trapdoor. The Quadro wooden loft ladder offers very good energy efficiency thanks to an insulated trapdoor with an airtight 4-point locking mechanism.



Key benefits at a glance

  • Traditional wooden loft ladder design.
  • Highly insulated for energy efficiency (U value of 0.77W/m2K).

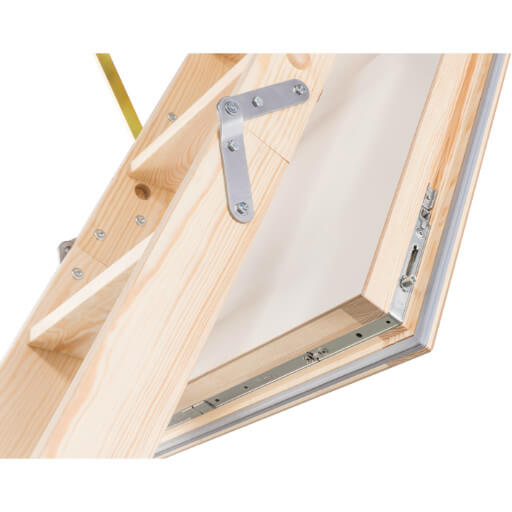

  • 4-point locking trapdoor for an airtight seal when closed.
  • Wide steps with anti-slip profile for comfort and safety.
  • Pre-drilled hatch box for quick and easy installation.
  • Available made-to-measure.

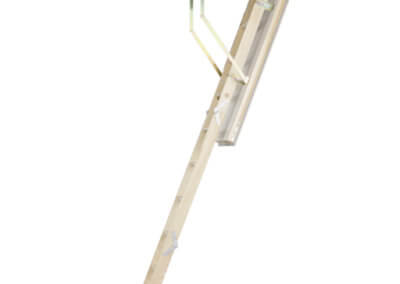

  • 3 part folding wooden loft ladder with adjustable tilt
  • Traditional wooden loft ladder design
    • Attractive styling
    • Quality finish
  • Load capacity of 150kg per step

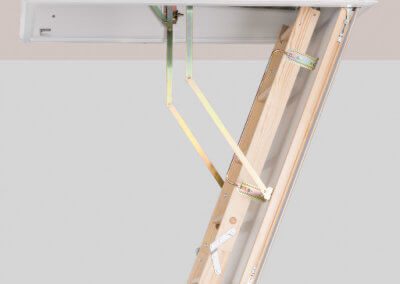

  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides

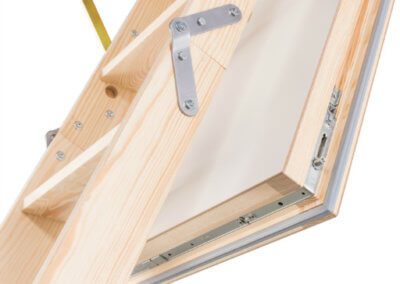

    • 4-point locking mechanism
    • Pre-drilled holes in hatch box for quick and easy installation
  • Energy efficienct (U-value of 0.77 W/m2K, calculated by manufacturer according to DIN EN ISO 6946)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Made-to-order to meet your exact dimensional requirements, for floor-to-ceiling heights of up to 3200mm (see ‘dimensions’ tab for details)
  • Wide steps / treads with anti-slip profile for comfort and safety
    • Step width of 330mm
    • Step depth of 80mm
  • Supplied ready to install with a standard with a range of accessories
    • Handrail for safety

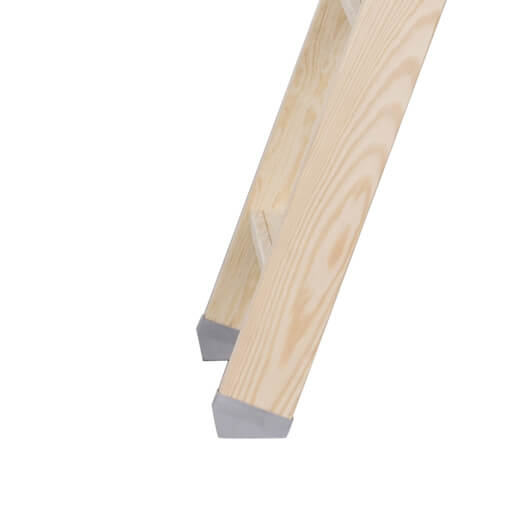

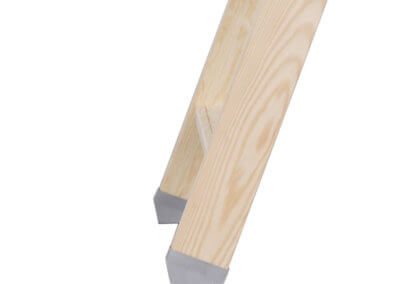

    • Protective feet
    • Operating rod with square shaft
    • Snap-on cover strips in white

Available as a 2-part sliding loft ladder. Please see the Quadro 2 for full details.

The Quadro loft ladder is made-to-measure, to suit your exact requirements.

Floor-to-ceiling heights from 1.95m to 3.20m

Opening lengths from 1000mm to 1600mm

Opening widths from 500mm to 900mm

Hatch box heights from 185mm to 550mm



Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and to arrange a quotation.

CSS PLL Quadro

  • Manufactured to EN 14975 (DN 4570)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Brochure

Wooden loft ladder brochure

Drawings

Quadro 3 part wooden – 6000426
