Quadro DD wooden loft ladder with upper cover for improved thermal insulation. Premier Loft ladders

Wooden loft ladder and hatch box Load rating of 150kg per tread Overall Load rating. 350kg/m2 Supplied with handrail as standard Available made-to-measure Thermally insulated. U value = 0.46 W/m2K Class 4 certified airtight seal

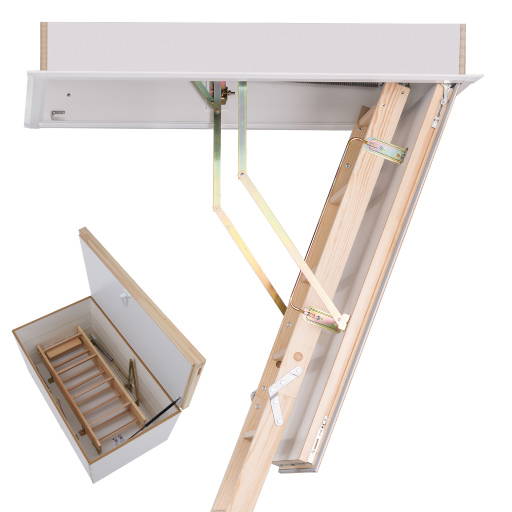

Quadro DD Wooden Loft Ladder

The Quadro DD loft ladder…

…with upper loft hatch for improved thermal insulation

From £765 (excl. VAT)

KEY FEATURES

Material: Wood
Operation: 3-part folding
Load capacity: 150 kg per step
U-value: 0.46 W/m2K
Max floor-to-ceiling height: 3.44 m

The Quadro DD wooden loft ladder is the solution when ‘standard’ is simply not good enough. It is supplied as an easy to fit, made-to-measure unit. It also features an upper loft hatch that provides improved thermal insulation. In addition, the upper cover can be closed immediately after entering the loft, therefore preventing the flow of air. This not only helps to lock the warmth in the home or building, but also prevents moist air from flowing into the loft and condensing in the cold areas. Furthermore, the Quadro DD is suitable for ceiling heights of up to 3.44 m.



Key benefits at a glance

  • Traditional wooden loft ladder design.
  • Insulated upper loft hatch
  • Highly thermal insulation for energy efficiency (U value of 0.46 W/m2K).
  • 4-point locking trapdoor for an airtight seal when closed.
  • Wide steps with anti-slip profile for comfort and safety.
  • Suitable for ceiling heights up to 3.44 m.
  • Pre-drilled hatch box for quick and easy installation.
  • Available made-to-measure.
  • 3 part folding wooden loft ladder with adjustable tilt
  • Traditional wooden loft ladder design
    • Attractive styling
    • Quality finish
  • Load capacity of 150 kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • Upper cover with one-hand, gas-spring assisted operation
    • 4-point locking mechanism
    • Standard hatch box height of 670 mm
    • Pre-drilled holes in hatch box for quick and easy installation
  • Energy efficient (U-value of 0.46 W/m2K, calculated by manufacturer according to DIN EN ISO 6946)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Made-to-order to meet your exact dimensional requirements, for floor-to-ceiling heights of up to 3440 mm (see ‘dimensions’ tab for details)
  • Wide steps / treads with anti-slip profile for comfort and safety
    • Step width of 330 mm
    • Step depth of 80 mm
  • Supplied ready to install with a standard with a range of accessories
    • Handrail for safety
    • Protective feet
    • Operating pole with hook
    • Snap-on cover strips in white

N/A

The Quadro DD loft ladder is made-to-measure, to suit your exact requirements.

Floor-to-ceiling heights from 1.95 m to 3.44 m

Opening lengths from 1000 mm to 1600 mm

Opening widths from 530 mm to 900 mm

Hatch box height of 670 mm



Please contact us to discuss your requirements and to arrange a quotation.

  • Manufactured and tested to EN 14975 (certified by TÜV SÜD)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Protective upper level wooden rail for loft ladder opening

Protective Wooden Railing for Opening

£65 (excl. VAT)

Suitable for maximum aperture of 1400 mm x 700 mm

Drawings

Quadro 3 part wooden – 6000426B
