Esca 11 loft ladder. Wooden loft ladder and hatch, available in standards sizes for quicker delivery

Wooden loft ladder and hatch box Load rating of 150kg per tread Overall Load rating. 350kg/m2 Thermally insulated. U value = 1.30W/m2K Class 4 certified airtight seal

Esca 11 Loft Ladder

The Esca 11 wooden loft ladder…

…FSC® certified traditional wooden loft ladder

From £360 (excl. VAT)

KEY FEATURES

Material: Wood
Operation: 3-part folding
Load capacity: 150kg per step
U-value: 1.30 W/m2K
Max floor-to-ceiling height: 2.85m

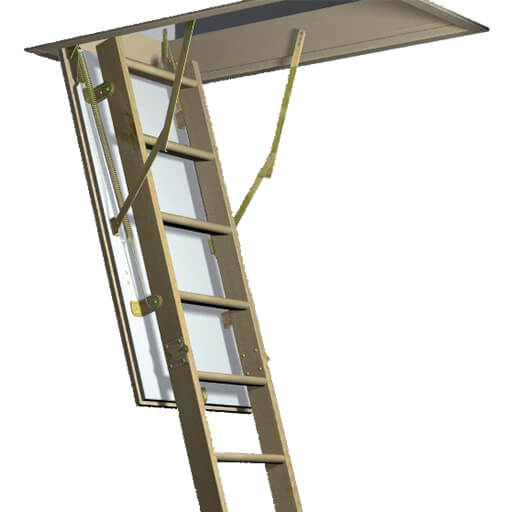

The Esca 11 wooden loft ladder is a traditional wooden loft ladder manufactured from FSC® sourced wood. It is supplied as a ready to fit unit in standard sizes only, consisting of a 3-part folding wooden ladder contained within, and attached to, a wooden hatch box and insulated trapdoor.



Key benefits at a glance

  • Traditional wooden loft ladder design.
  • Manufactured from FSC® sourced wood.
  • Load capacity of 150kg per step.
  • Energy efficienct of 1.30 W/m2K.
  • Wide steps with anti-slip profile for comfort and safety.
  • Hatch trap door finished in white on both sides.





  • 3 part folding wooden loft ladder
  • Traditional wooden loft ladder design
  • Load capacity of 150kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • Hatch box height of 140mm
    • Snap-lock closure mechanism
  • Energy efficient (U-value of 1.30 W/m2K, certified according to DIN ISO 12567-1 by IFT Rosenheim)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Available in standard hatch sizes for floor-to-ceiling heights between 2200mm and 2850mm
  • Wide steps / treads with anti-slip profile for comfort and safety
    • Step width of 360mm
    • Step depth of 80mm
  • Supplied ready to install

N/A

The Esca 11 wooden loft ladder is available in the following standard sizes that can be ordered on line and delivered within 2 weeks.



Clear room height (mm)

Opening length x width (mm) Case height (mm)

2200 – 2850

1200 x 600

140

2200 – 2850

1200 x 700

140

2200 – 2850

1300 x 700

140

2200 – 2850 1400 x 700

140

  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Handrail for folding wooden loft ladders

Handrail

£14 (excl. VAT)

White wooden cover strips for wooden loft ladder hatch boxes

Wooden Cover Strips

£28 (excl. VAT)

Loft Ladder Close-off lock for additional security

Close-Off Lock

£110 (excl. VAT)

NBS Plus

Technical specification for the Esca 11 wooden loft ladder can be found on NBS Plus.

Premier Loft Ladders technical specifications available on NBS Plus
