It’s not always easy to find wide loft ladders…
It is not the sort of feature that most loft ladder suppliers mention in their product headlines. While we do our best to make dimensional data available and easily accessible, it can be a hassle going through each product one-by-one. We love our products, but appreciate that not everyone wants to spend hours studying their technical specifications!
That is why we have produced this summary of our loft ladder tread widths. Hopefully this makes things a little easier for you…
Concertina loft ladders
Our range of concertina loft ladders come in a variety of tread widths, which is dependent upon the aperture width. Below is the maximum tread width option for each model for the widest possible aperture. Please click the links to see full product details or contact us to discuss your requirements.
| Type | Operation | Maximum step/tread width | Required ceiling opening width | |
| Supreme | Concertina/ Retractable | Manual | 580 mm | 1005 mm – 1200 mm |
| Supreme Electric | Concertina/ Retractable | Electric | 580 mm | 1005 mm – 1200 mm |
| Supreme DD | Concertina/ Retractable | Manual | 380 mm | 720 mm – 800 mm |
| Supreme F30 Wooden | Concertina/ Retractable | Manual | 380 mm | 700 mm – 800 mm |
| Supreme F30 Steel | Concertina/ Retractable | Manual or Electric | 580 mm | 1100 mm – 1200 mm |

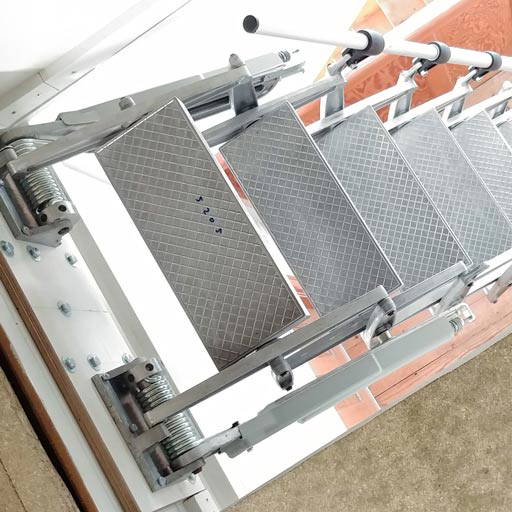

| Elite | Concertina/ Retractable | Manual | 380 mm | 610 mm upwards |
| Piccolo/Piccolo Premium | Concertina/ Retractable | Manual | 330 mm | 420 mm upwards |
| Ecco | Concertina/ Retractable | Manual | 330 mm | 660 mm – 900 mm |
| MiniLine F30/F30 Plus/F60 | Concertina/ Retractable | Manual | 330 mm | 640 mm – 900 mm |
Steel (folding) loft ladders
With the exception of very narrow apertures, our steel loft ladders are supplied with the tread widths shown below. Please click the links to see full product details or contact us to discuss your requirements.
| Type | Operation | Maximum step/tread width | Required ceiling opening width | |
| Klimatec 160 Passivhaus | 3-part folding | Manual | 360 mm | 600 mm – 700 mm |
| Isotec | 3-part folding | Manual | 360 mm | 600 mm – 900 mm |
| Isotec 200 | 3-part folding | Manual | 360 mm | 600 mm – 900 mm |
| Isotec Electric | 3-part folding | Electric | 360 mm | 700 mm |
| Eurostep | 3-part folding | Manual | 360 mm | 600 mm – 900 mm |
Wooden (folding and sliding) loft ladders
Wooden loft ladder tread widths are fixed, except for very narrow (made-to-measure) apertures. Please click the links to see full product details or contact us to discuss your requirements.
| Type | Operation | Maximum step/tread width | Required ceiling opening width | |
| Designo & Designo Passivhaus | 3-part folding | Manual | 330 mm | 600 mm – 800 mm |
| Quadro | 3-part folding | Manual | 330 mm | 600 mm – 900 mm |
| Cadet 3 | 3-part folding | Manual | 360 mm | 600 mm or 700 mm |
| ProfiLine F30/F30 Plus/F60 | 3-part folding | Manual | 330mm | 600 mm – 900 mm |
Why is it important to choose a loft ladder with wide treads?
One of the most important reasons for choosing wide loft ladders is safety. A wide tread/step allows users of the loft ladder to achieve a more secure footing. It also helps achieve better balance. Another important factor is ease of egress and comfort. Choosing a loft ladder with wide steps is particularly recommended for commercial/industrial applications, and residential applications where the loft ladder is used more frequently.
The tread width of our retractable concertina loft ladders is variable. They are manufactured such that the tread width is maximised to suit your ceiling opening width. Our range of Supreme loft ladders (pictured here) offer the greatest range of widths – with steps up to 580mm wide. They also benefit from tread depths of 140mm (or 160mm for larger step widths of 430mm to 580mm).
Please contact us to discuss your specific requirements, such that we can help identify the best retractable loft ladder for your needs. Alternatively, please feel free to explore our range of products…
Retractable wide loft ladders. Variable tread width to suit ceiling opening.
Unlike concertina loft ladders, their wooden counterparts feature fixed tread/step widths. These are detailed in the table above and in the attached datasheet. With tread widths from 330mm and a tread depth of 80mm (standard across the whole range) our wooden loft ladders provide safe and comfortable access to loft/attic spaces and offer minimal protrusion above the hatch.
Please visit our wooden loft ladder product range for more information…

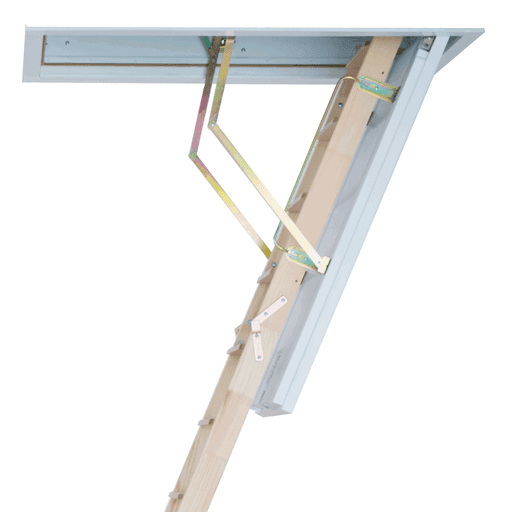

The Cadet 3 Loft Ladder features 360 mm wide steps
If you have any questions about our range of wide loft ladders, or would like to discuss your application, please get in touch…
