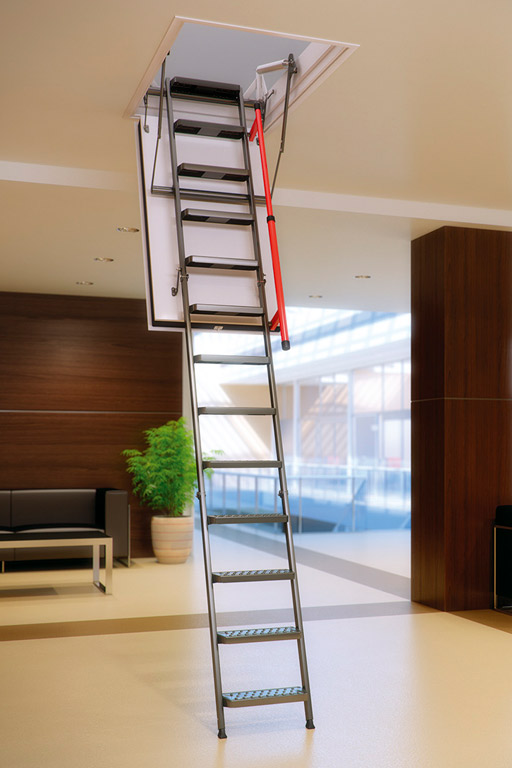

LMF 120 Fire Resistant Loft Ladder
LMF 120 Fire Resistant Loft Ladder…
…High strength metal loft ladder with 120 min protection
From £1755 (excl. VAT)
Including delivery to any UK mainland address
KEY FEATURES
Material: Metal
Operation: 3-part folding
Load capacity: 200 kg per step
U-value: 0.79 W/m2K
Max floor-to-ceiling height: 3.05 m
The LMF 120 fire resistant loft ladder is a great option for projects that require extra long protection from fire. It tested for 120 minutes from below and above in concrete ceilings. Furthermore, the steel ladder has a high load-bearing capacity of 200kg per tread.
The steel frame hatch box is available in a range of sizes. Also, it is designed for quick installation.
Key benefits at a glance
- High strength folding ladder.
- Load capacity of 200 kg per step.
- Good energy efficiency of 0.79 W/m2K.
- 120 minute fire protection (from below and above).
- Counter-balanced hatch and ladder operation.
- Wide and deep treads with anti-slip profile for comfort and safety.
- Available in standard sizes only.

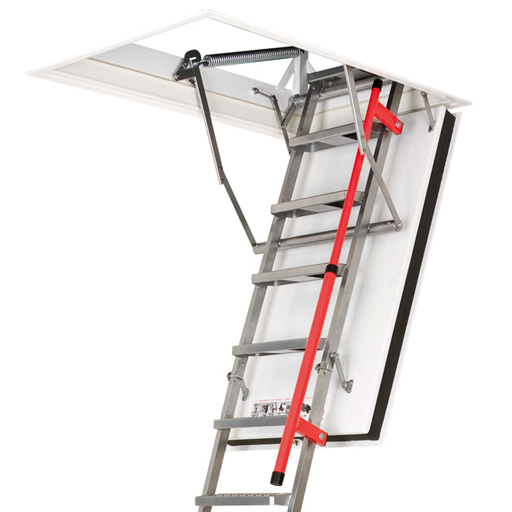

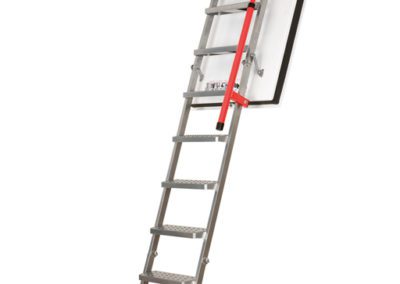

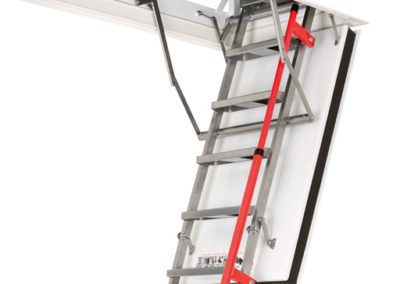

- 3-part folding steel loft ladder
- Load capacity of 200 kg per step
- EI160 and EI2120 fire-protection from above and below (tested according to EN 1634-1 by FIRES, s.r.o.)
- Suitable for use in concrete ceilings only (with a minimum density of 613 kg/m3

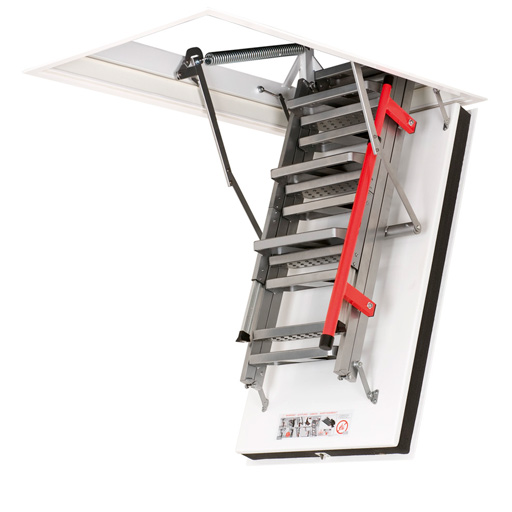

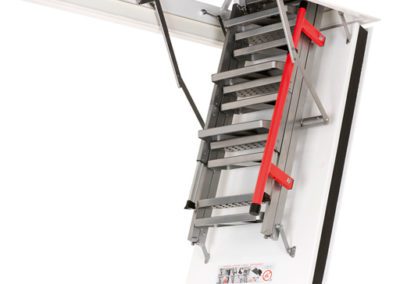

- Supplied assembled in a steel hatch box with insulated trapdoor
- Trapdoor supplied with a white finish to both sides
- Standard hatch box height of 160 mm
- Designed for quick and easy installation
- Good energy efficiency (U-value of 0.79 W/m2K, tested to EN ISO 12567-1)
- Reducing loss of heat and lowering energy costs
- Available in standard hatch sizes for floor-to-ceiling heights from 2330 to 2800 mm
- Wide steps / treads with anti-slip profile for comfort and safety
- Step width of 350 mm
- Step depth of 130 mm
- Supplied ready to install, including:
- Handrail for safety

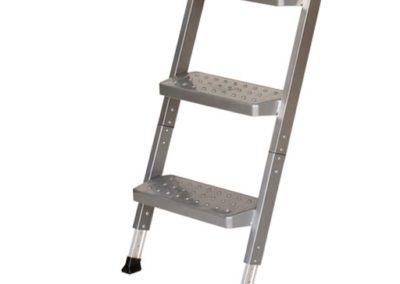

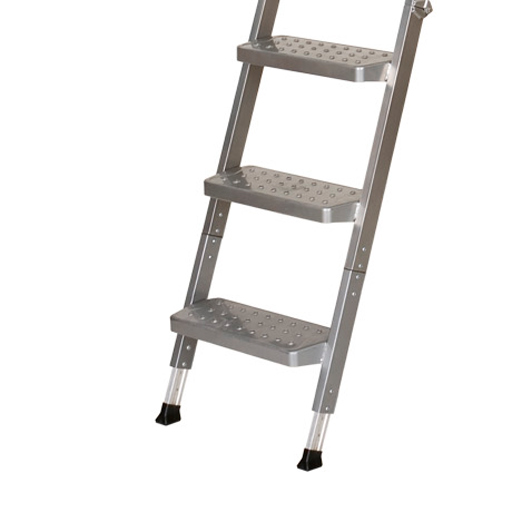

- Protective feet
- Operating rod
- N/A
The LMF 120 fire resistant loft ladder is available in the following standard sizes that can be ordered on line.
|
Clear room height (mm) |
Opening length x width (mm) | Case height (mm) * |
|
2330 – 2800 |
1200 x 600 |
160 |
|
2330 – 2800 |
1200 x 700 |
160 |
| 2330 – 2800 | 1300 x 700 |
160 |
| 2330 – 2800 | 1400 x 700 |
160 |
| 2330- 2800 | 1300 x 860 |
160 |
Other standard sizes may be available on special request. Please contact us to check the price and delivery lead-time.
- Manufactured and tested to EN 14975
- Supplied with a manufacturer’s 3-year warranty
