Taking the right steps to combat fire

Why choose a fire rated loft hatch and ladder?

A fire rated loft hatch and ladder provides safe and convenient access into a loft, plant room or onto a roof. Most importantly, it provides fire resistance when closed. The hatch can also provide high levels of thermal insulation and therefore help to keep energy costs down.

Fire rated products from Premier Loft Ladders

Our product range includes fire rated retractable aluminium and folding wooden loft ladders. Furthermore, these lead the field in design, technology, energy efficiency and quality. They are also built to EN 14975 and fire resistant to DIN 4102.

In addition, we have recently launched a range of metal-folding loft ladders. These include one rated to 120 minutes. Another comes with Passivhaus certification and 30 minutes fire rating. These models are tested to ÖNORM 3860, EN 1634-1, EN1363-1.

Supreme fire rated loft hatch and ladder from Premier Loft Ladders

Supreme fire rated loft hatch and ladder, with a steel hatch box rated to either 30, 60 or 90 minutes.

Commercial & industrial projects

Heavy duty fire rated loft hatch and ladders are available for commercial and industrial projects. However, it is important to ensure that the loft ladder has been built and tested in accordance with EN 14975. As a result you can be certain it can support a minimum load of 150 kg per tread/step. It is generally recommended to choose a loft ladder for commercial projects that is certified to at least 200 kg per tread. Also, opt for a wide ceiling opening to maximise tread width and depth. As such, safety and comfort will be improved for those using the loft ladder.

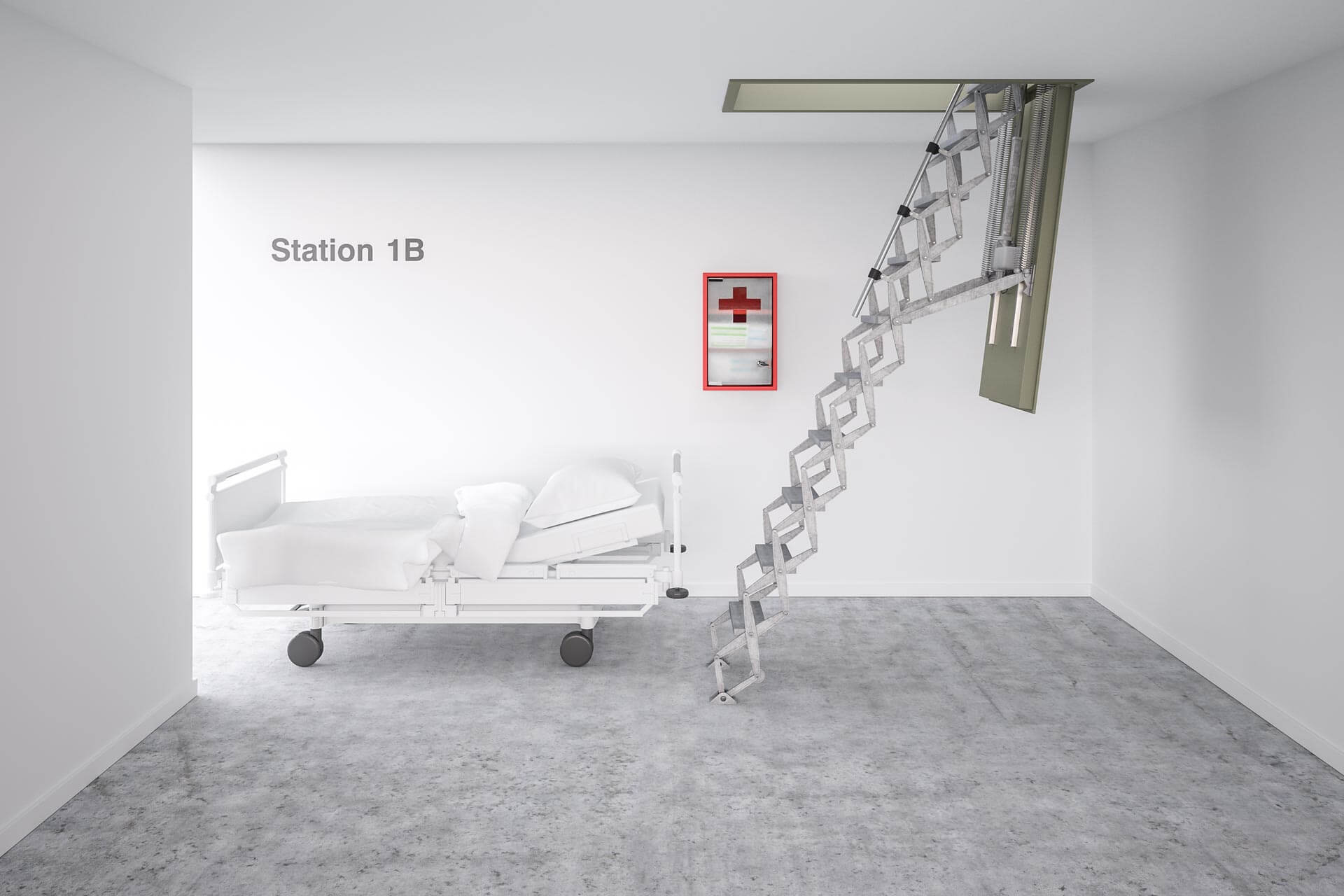

Supreme Electric loft ladder with steel fire rated hatch. Ideal for demanding applications such as hospitals. Premier Loft Ladders

Supreme Electric loft ladder with steel fire rated hatch is ideal for demanding projects such as hospitals.

Aluminium, wooden or steel ladder?

The choice between an aluminium, wooden or steel fire rated loft ladder is largely based upon preference. However, retractable aluminium loft ladders are available to fit smaller hatch box sizes. This makes them best suited for projects where space is limited. Also, wooden loft ladders are typically limited to floor-to-ceiling heights of just over 3m. Whereas, retractable ladders, such as the Supreme F30 and F60/F90 with steel hatch box, can be used for heights up to 4.6m.

Other considerations:



Security

Make sure to choose a loft ladder that can be fitted with a lock where security is a concern, such as in public buildings. Also, ensure that the hatch is strong and durable. A fire rated steel hatch and ladder may therefore be the best option.

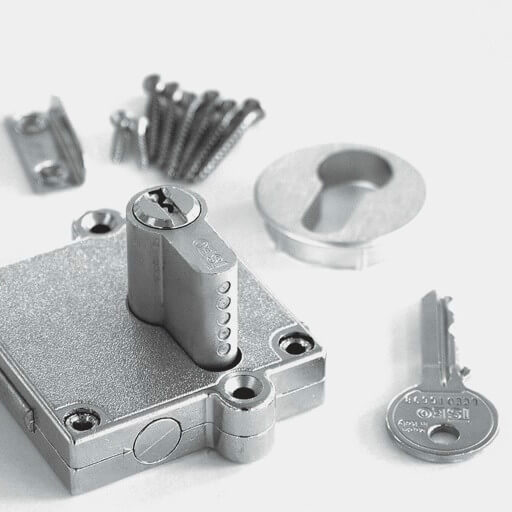

Loft Ladder lock for additional security

Thermal insulation

As mentioned before, thermal insulation can help to keep in the warmth and lower energy use. We recommend choosing a fire rated loft hatch and ladder that offers high levels of thermal insulation. For example, you should really be looking for a product offering a U-value of less than 1 W/m2K. Read our guide to insulated loft ladders for more details.

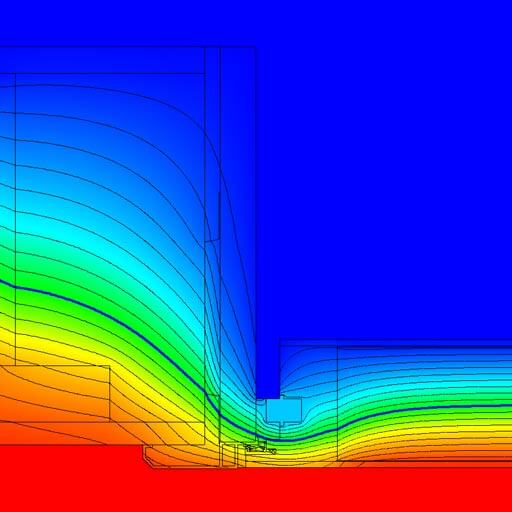

Loft ladder heat profile

Operation from above

Another consideration is whether the fire resistant loft hatch and ladder need to be opened and extended from above. Quite often the loft ladder is used as a secondary means of escape from a plant room or roof. As such, it needs to be operable from above. Therefore, a manual concertina ladder (such as the Supreme range modified with top-operation) or fully automatic electric ladder would be best suited.

Top opening mechanism for the Supreme retractable loft ladder with steel hatch box and trapdoor

Made-to-measure fire rated loft hatch and ladder

Finally, when choosing a fire rated loft hatch and ladder you may wish to consider whether you need a made-to-measure solution. Fire rated loft ladders can come in standard sizes. As a result, they may be available from stock or benefit from a shorter lead time. However, choose a made-to-measure fire rated loft hatch with ladder if your ceiling structure cannot be altered. Consequently, it may be slightly more expensive and you may have to wait a couple of weeks, but it should save time and cost on-site.

The Klimatec 160 is perfect for passive house projects that require fire protection.

The Klimatec 160 is perfect for passive house projects that require fire protection.

Fire protection with Passivhaus certification

There is a growing trend to make buildings more energy efficient. As a result, more homes and commercial buildings are being built to passive standards. However, safety and protection from fire also remain a concern. Therefore new products, such as the Klimatec 160, have been introduced to help fill this need. The Klimatec 160 is certified by the Passivhaus Institute and also benefits from 30 minutes (EI230) fire rating.

Installing a fire rated loft hatch and ladder

Fire rated loft ladders should be installed following the manufacturer’s recommended guidelines. The process will normally be the same as for any other loft ladder. However, after installing it is essential to fill the gap between the hatch box and the structural opening with a fire resistant mortar. We recommend using a mortar that meets class 3 DIN 18580. Alternatively, you could also use mortars tested to EN 1366-3 and BS 476 part 4 and 20. We also advise that the mortar is filled to a minimum depth of 180 mm within the gap.

Please get in touch if you have any questions about our fire rated loft hatch and ladder product range, or would like to discuss your project…

We hope you found this helpful!

If so, please feel free to share this article with family, friends and colleagues so that they can also benefit. Also, why not follow-us on social media for further tips, ideas and the latest product news…
