Keeping in the warmth

An uninsulated home loses considerable heat through the roof. Insulating your loft/attic could therefore save you hundreds of pounds in energy costs. Furthermore, it is relatively quick and easy to do.

However, the cooler air in an insulated loft can result in draughts through gaps in the insulation, such as an ill-fitting and poorly insulated loft hatch with ladder. The Energy Saving Trust recommend fitting an insulated loft hatch. They also advise you to use draught-excluding seals around its edges to make the hatch airtight.

Here is our guide for helping you find the perfect insulated loft hatch with ladder for your home…

Designo insulated loft hatch and ladder. Available with Passivhaus certification. Premier Loft Ladders

The Designo loft ladder features an airtight and highly insulated hatch box to help keep in the warmth.

How to choose an airtight and insulated loft hatch with ladder

There are three important factors to consider when choosing an insulated loft hatch with ladder:

1. The amount of thermal insulation provided by the loft hatch

Thermal insulation is the reduction of heat transfer through objects of differing temperature. A well-insulated loft hatch therefore reduces the heat loss from the warm room into the cooler loft space above.

But how do you measure thermal insulation? When reviewing all the different insulated loft hatches and ladders that are available on the market, you need to pay attention to the U-value. This is a measure of how much heat is lost through the loft hatch by conduction, convection and radiation. A high U-value indicates high heat-loss. A low U-value indicates low heat-loss. As a bench-mark, a solid wall has a U-Value of approximately 2 W/m2K.

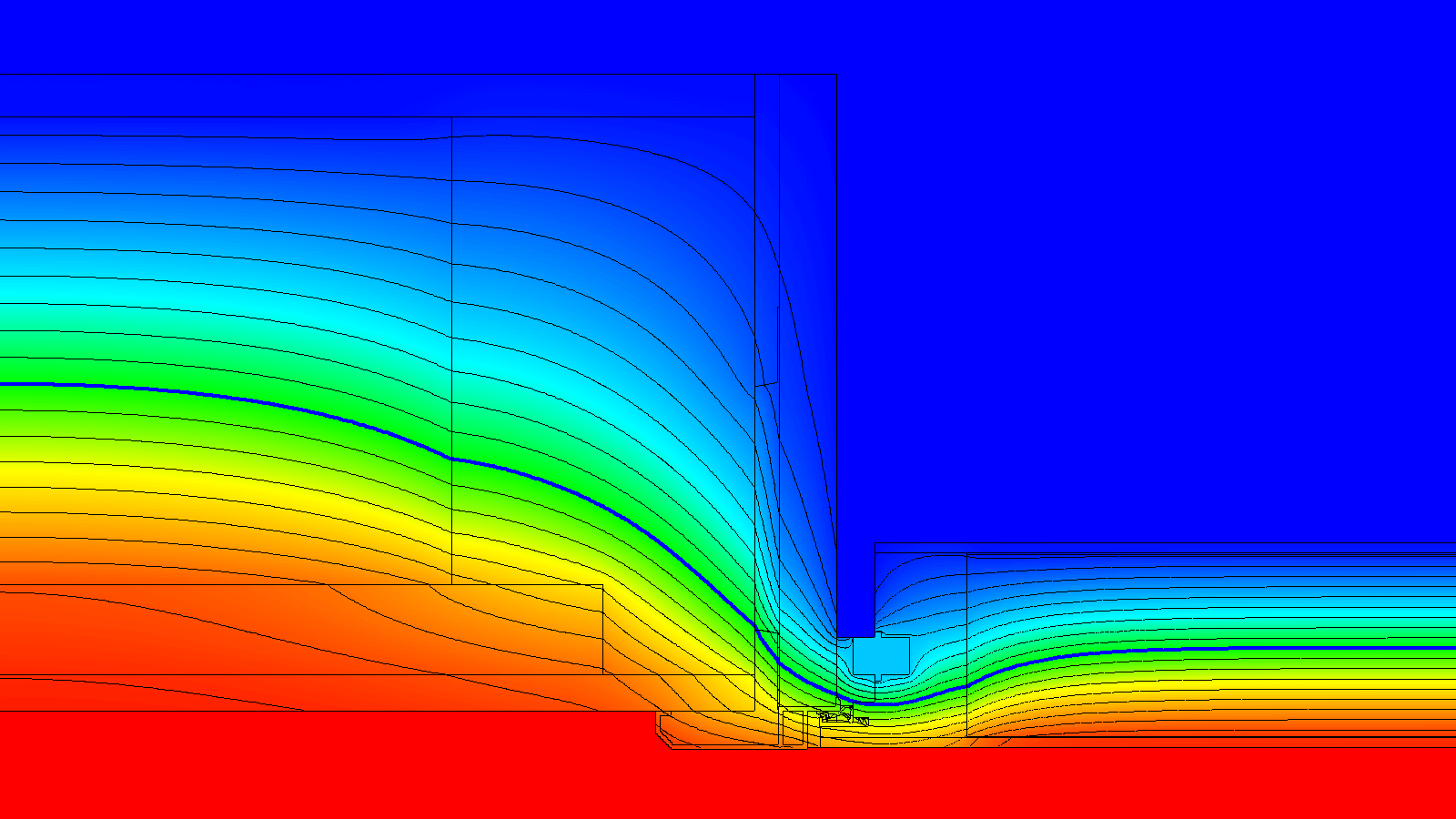

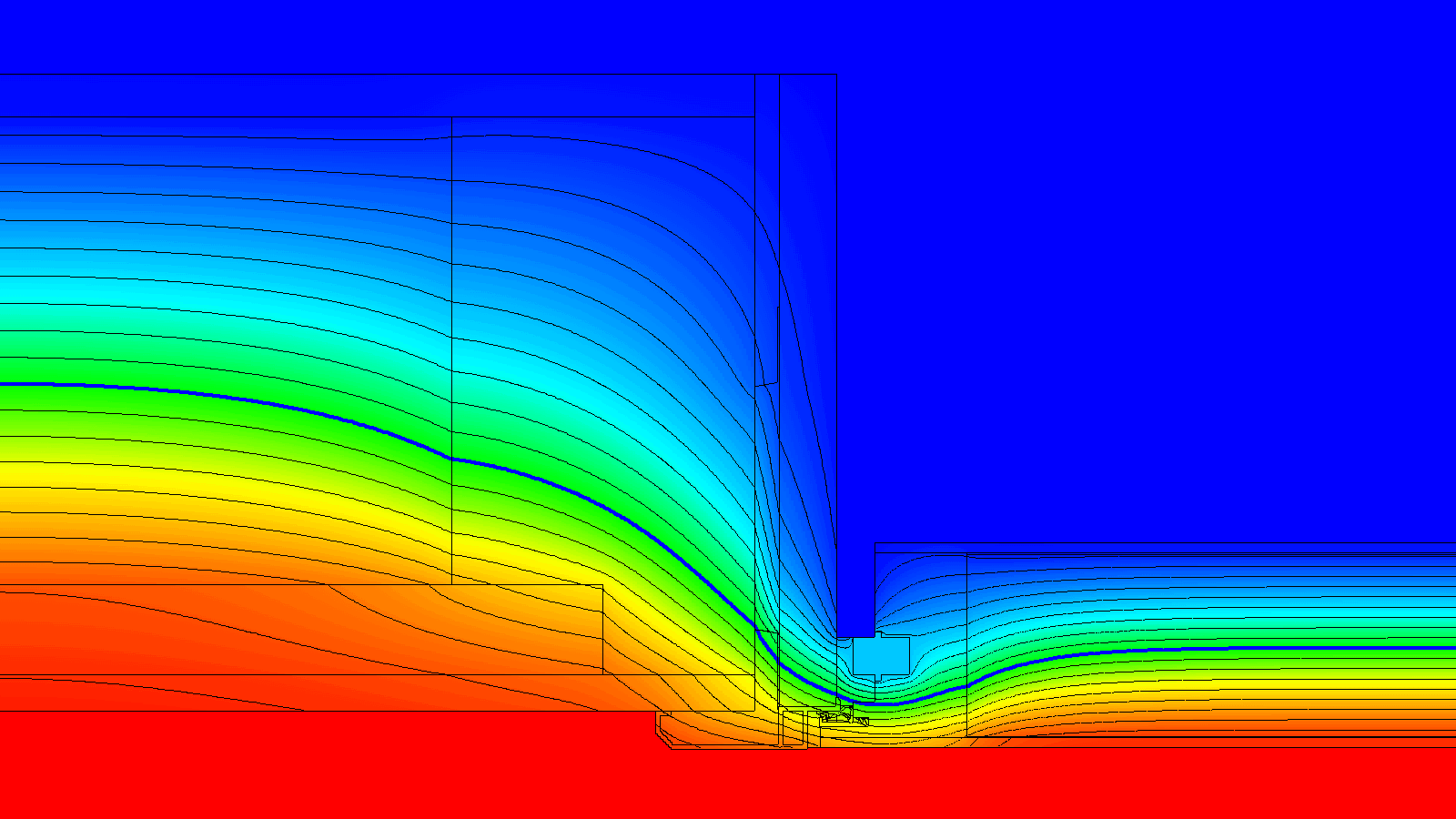

Designo passivhaus certified loft ladder heat profile

Insulated loft hatch with ladder heat profile. Warmth stays in the room below.

For a well-insulated loft hatch with ladder, you should really be looking for a product offering a U-value of less than 1 W/m2K. Be particularly cautious of loft ladders claiming to be ‘highly-insulated’ if they are not supported by a U-value. Also, don’t be afraid to ask where that U-value came from. Its important to know if it was tested (or perhaps calculated) by a recognised professional institution.

2. Air permeability through the loft hatch box

Air permeability of loft hatches relates to the amount of air that will travel through the hatch while in its closed position. In other words, is it an airtight loft hatch? An insulated hatch is of little use if the trapdoor does not prevent warm air from escaping through gaps around its edges. This may sound obvious, but not all loft hatches offer a tightly closing sealed door.

The first thing to look for is whether the loft hatch is certified with a Class 4 air permeability rating. Class 4 is the highest rating, so anything certified to this standard is recommended.

The other thing to consider is the construction of the trapdoor. A strong, rigid trapdoor, made from durable materials should last the test-of-time and provide an airtight seal for many years of use. Also consider the number of locking-points on the trapdoor. Modern windows feature multiple locking-points to help ensure a tight and even seal around all its edges. The same applies to an insulated loft hatch with ladder. Consider loft hatches that have multiple locking points.  For example, our Designo, Quadro and Ecco loft ladders feature a high quality multi-point locking mechanism for a window-tight seal.

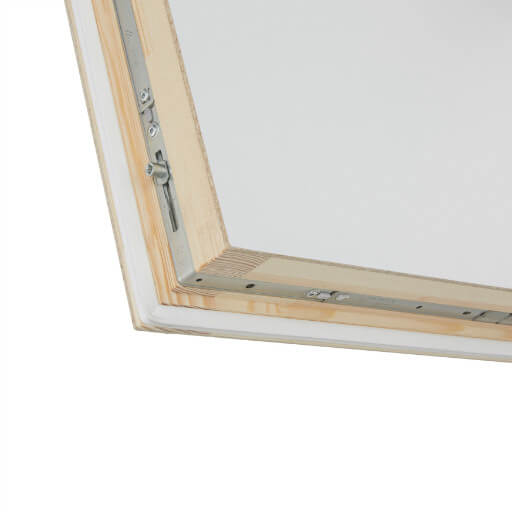

Designo hatch with 6-point locking mechanism for air tight seal

Designo insulated loft hatch with 6-point locking mechanism for an airtight seal

WDL sealing and insulation tape for an airtight connection between the loft ladder hatch box and the building

WDL insulation and sealing tape for an airtight connection between the loft ladder hatch box and the building

3. Air permeability around the outside of the hatch box

Now you have a well-insulated and airtight loft ladder hatch. The final challenge is to minimise the amount of air that escapes around the outside of the hatch box. It is therefore important to make sure that you choose a hatch box that fits the size of your ceiling opening. Where possible, choose a made-to-measure loft ladder to ensure a good fit and leaves a sufficient gap between the hatch box and the structural opening. The small gaps around the edges are required to allow for installation tolerances as well as minimise heat transfer through thermal bridging.

Finally, it is important to seal and insulate the gaps around the edge of the loft hatch box. To ensure the best possible seal, you can order your loft ladder from Premier Loft Ladders with WDL sealing tape. The patented WDL tape is pre-assembled to the hatch box and offers an airtight seal with the building. Made of tear-resistant material, it also provides thermal and acoustic insulation. WDL sealing tape is fitted as standard to our Designo and Ecco loft ladders. You can also order it with many of our other loft ladders (see the recommended accessories on our Product Pages).

Achieving Passive House (Passivhaus) standards of thermal insulation

The factors considered above are essential for projects aiming to achieve Passive House standards. Premier Loft Ladders offer three ladders certified by the Passivhaus Institute:

Also available are a few special loft ladders offering U-values as low as 0.28 W/m2K (the Designo DD, Quadro DD and Supreme DD). They feature a secondary upper cover that can be closed after entering the loft. As a result, they help to lock the warmth in the home and also prevent moist air from flowing into the loft and condensing in the cold areas.

For further details, please visit our Passive House Applications page.

Passive house certified loft ladder. Klimatec 160 available from Premier Loft Ladders

Passive house certified loft ladder – Klimatec 160.

Why not explore our range of loft ladders…

…or contact us to discuss your requirements.
