Concertina loft ladder with hatch box Load rating of 150kg per tread Overall Load rating. 350kg/m2 Supplied with handrail as standard Available made-to-measure Class 4 certified airtight seal Thermally insulated. U value = 0.80W/m2K

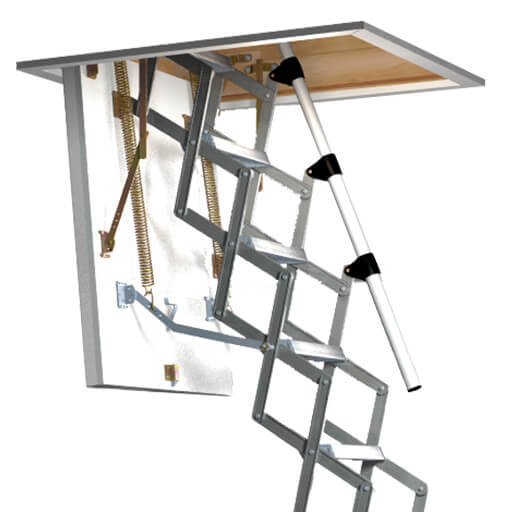

Mini Loft Ladder

The Mini retractable aluminium loft ladder…

…ideal for small ceiling openings

From £795 (excl. VAT)

KEY FEATURES

Material: Aluminium
Operation: Spring-assisted retractable ladder
Load capacity: 150kg per step
U-value: 0.80 W/m2K
Max floor-to-ceiling height: 3.25m

The Mini aluminium loft ladder is specially designed for small ceiling openings. It is supplied as a ready to fit unit, consisting of a space-saving aluminium ladder contained within, and attached to, a laminated wooden hatch box. The insulated trapdoor provides good energy efficiency and both sides are finished in white for improved aesthetics. It is supplied with a factory-fitted telescopic handrail for comfort and safety.



Key benefits at a glance

  • Space-saving retractable loft ladder for small ceiling openings.
  • Lightweight and durable aluminium ladder.
  • Load capacity of 150kg per step.
  • Ease of use.
  • Good energy efficiency of 0.80 W/m2K
  • Hatch trap door finished in white on both sides.
  • Available in standard sizes or made-to-order, with a range of accessories.
  • Available with F30, F30 Plus and F60 fire resistance.
  • Retractable (concertina) loft ladder
    • Easy to operate
    • Compact, space-saving design
  • Retractable ladder manufactured from aluminium
    • Lightweight
    • Strength
    • Durability
  • Load capacity of 150kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • Standard hatch box height of 240mm, but can be specified for heights of up to 390mm
    • Snap-lock closure mechanism
  • Energy efficient (U-value of 0.80 W/m2K, calculated by manufacturer according to DIN EN ISO 6946)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Available in standard hatch sizes for floor-to-ceiling heights between 2250mm and 2750mm
  • Can be made-to-order to meet your exact dimensional requirements, for floor-to-ceiling heights of up to 3250mm (contact us for details)
  • Optimal step / tread size for width of ceiling opening
    • Maximum stair width supplied to fit your floor-to-ceiling height and opening width
    • Step width of 280mm (for a 550mm opening width) and 330mm (for opening widths between 600mm and 800mm).
    • Step depth of 80mm
  • Supplied with a telescopic handrail for comfort and safety
  • Can be specified to meet F30, F30 Plus or F60 fire resistance. Visit the MiniLine product page for further details.

The Mini loft ladder is available in the following standard sizes that can be ordered online.

Clear room height (mm)

Opening length x width (mm) Case height (mm)

2250 – 2750

1100 x 600

240

2250 – 2750

1100 x 700

240

2250 – 2750

1200 x 600

240

2250 – 2750 1200 x 700

240



Available made-to-measure…

The Mini loft ladder can also be ordered made-to-measure for floor-to-ceiling heights from 2m to 3.25m, and opening sizes from as small as 800mm long x 550mm wide. Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and to arrange a quotation.

CSS PLL Mini



  • Manufactured to EN 14975 (DN 4570)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a Mini loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Brochure

Mini loft ladder brochure

Aluminium concertina loft ladder brochure

Drawings

Mini stairway – 6000237C

NBS Plus

Technical specification for the retractable Mini loft ladder can be found on NBS Plus.
