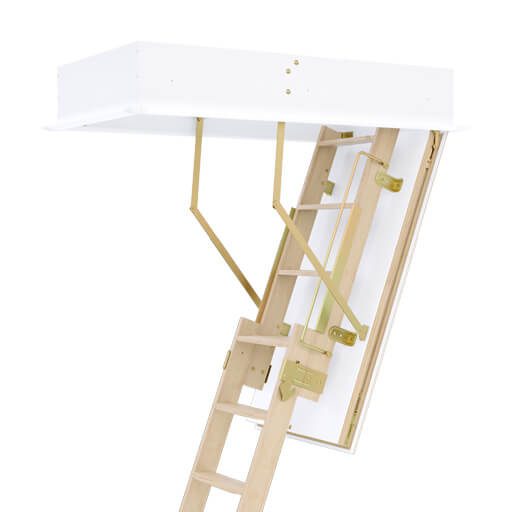

Quadro 2 Loft Ladder

The Quadro 2 wooden loft ladder…

…sliding mechanism for high floor-to-ceiling heights

from £535 (excl. VAT)

KEY FEATURES

Material: Wood
Operation: 2-part sliding
Load capacity: 150kg per step
U-value: 0.77 W/m2K
Max floor-to-ceiling height: 3.34m

The Quadro 2 wooden loft ladder features a sliding mechanism such that it can overcome a wide range of floor-to-ceiling heights, from 1.8m to 3.34m. It is supplied as a ready to fit unit, consisting of a 2-part sliding wooden ladder. The Quadro 2 also features a wooden hatch box and and insulated trapdoor with 4-point lock.

Key benefits at a glance

  • Traditional wooden loft ladder design.
  • Load capacity of 150kg per step.
  • Good energy efficiency of 0.77 W/m2K.
  • 4-point locking trapdoor for a tight seal when closed.
  • Wide steps with anti-slip profile for comfort and safety.
  • Hatch trap door finished in white on both sides.
  • Available in standard sizes or made-to-order with a range of options and accessories.
  • 2-part sliding wooden loft ladder with adjustable tilt
  • Load capacity of 150kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • 4-point locking mechanism
    • Pre-drilled holes in hatch box for quick and easy installation
  • Energy efficient (U-value of 0.77 W/m2K, calculated by manufacturer according to DIN EN ISO 6946)
    • Reducing loss of heat and lowering energy costs
  • Class 4 air permeability certified
  • Made-to-order to meet your exact dimensional requirements, for floor-to-ceiling heights of between 1800mm to 3340mm (contact us for details)
  • Wide steps / treads with anti-slip profile for comfort and safety
    • Step width of 360mm
    • Step depth of 80mm
  • Supplied ready to install with a standard with a range of accessories
    • Handrail for safety
    • Operating rod with square shaft
    • Snap-on cover strips in white

Available as a 3-part folding loft ladder. Please see the Quadro for full details.

The Quadro 2 loft ladder is made-to-measure, to suit your exact requirements.

Floor-to-ceiling heights from 1.80m to 3.34m

Opening lengths from 1000mm to 1600mm

Opening widths from 500mm to 900mm

Hatch box heights from 220mm to 500mm

Please download a ‘customer specification sheet’ (below) and contact us to discuss your requirements and to arrange a quotation.

CSS PLL Quadro

  • Manufactured to EN 14975 (DN 4570)
  • Supplied with a manufacturer’s 2-year full warranty and 10-year parts warranty

Accessories

The following accessories are only available for order with a loft ladder.  Please make sure to add the required accessories to your cart before checkout, or contact us directly to discuss your requirements.

Brochure

Wooden loft ladder brochure

Drawings

Quadro 2 part wooden – 6000429
