Designo Loft Door
Highly Insulated and airtight loft eaves door…
…sets the standard in long-lasting quality and design
From £445 (excl. VAT)
Including delivery to any UK mainland address
KEY FEATURES
Material: Wood
U-value: 0.60 W/m2K
Size: Standard sizes
The Designo insulated and airtight loft door offers the perfect solution for convenient access to cold loft eaves. It offers excellent thermal insulation (U-value of 0.60 W/m2K) and a circumferential seal with multi-point latching system. In addition, concealed hinges and durable white coating to the door and hatch box provide an attractive finish.
Key benefits at a glance
- High energy efficiency (U-value of 0.60 W/m2K).
- 4-point locking door for a tight seal when closed.

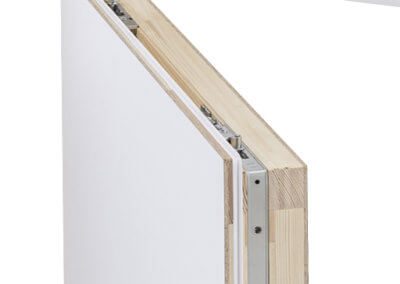

- Concealed hinge for a clean and modern finish.
- WDL insulation and sealing tape for airtight seal with the building.
- Available in a range of standard sizes.
Standard Features
- Insulated loft eaves door.
- Door supplied with a white finish to both sides.
- Hatch box depths from 140mm to 250mm.
- 4-point locking mechanism.
- High energy efficiency (U-value of 0.60 W/m2K, calculated by manufacturer according to DIN EN ISO 6946), reducing loss of heat and lowering energy costs.
- Circumferential seal.
- Door can be hinged on the left or right.
- Available in standard sizes (see ‘Dimensions’ tab).
- Supplied ready to install.
Available in the following standard sizes:
|
Opening height (mm) |
Opening width (mm) | Frame depth (mm) |
|
700 |
600 |
140 |
|
800 |
600 |
140 |
|
700 |
700 |
140 |
|
800 |
700 |
140 |
Please contact us to discuss your requirements and to arrange a quotation.
The loft door can be hinged on either the left or right side (must be specified when ordering).
- Supplied with a Roto manufacturer’s 2-year full warranty and 10-year parts warranty.
Expected life
- 30 years or more when correctly installed and maintained.
Recyclability
- Primary material is timber. An estimated 90% of all materials used in the product and packaging are recyclable.
Red List Materials
- Does not contain materials listed on the International Living Future Institute’s Red List.
Further information
- For further information about our sustainability policies, please click here.
NBS Source
Technical specification and BIM object for the Designo insulated loft eaves door can be found on NBS Source.
