Flat Roof Access Hatch Safety Post. Safe entry and exit from roof hatch.

Roof Access Safety Post

For safer entry and exit from flat roof access hatches

From £445 (excl. VAT)

Including delivery to any UK mainland address

BUY NOW

KEY FEATURES

Material: Steel, Stainless Steel (304) or Aluminium
Finish: Yellow, Galvanised or Natural
Operation: Spring-assisted operation

FIND OUT MORE

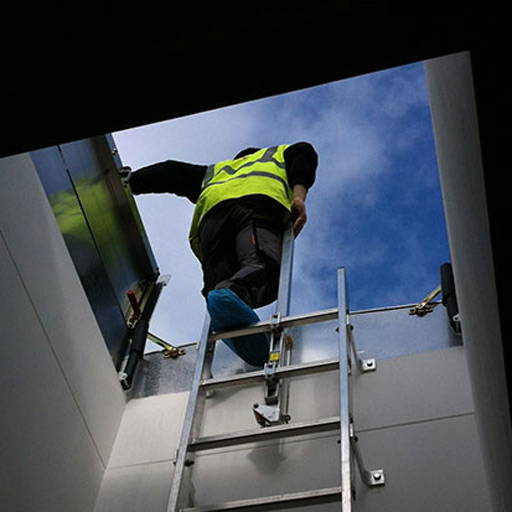

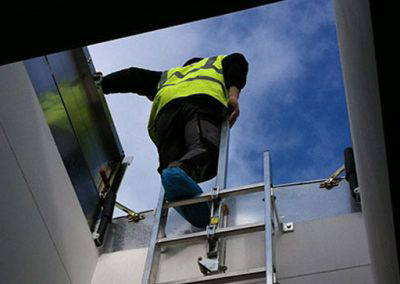

Bilco Ladder-Up Post in use. View from below.

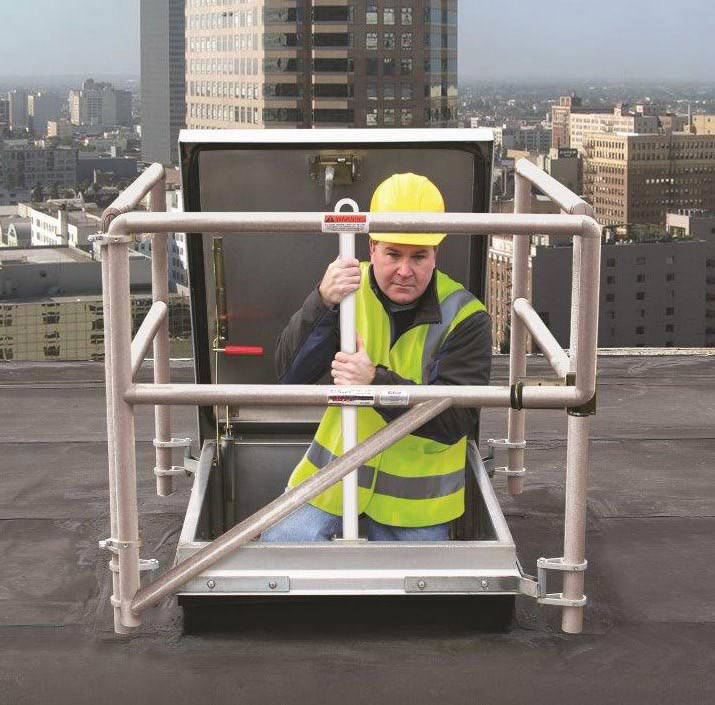

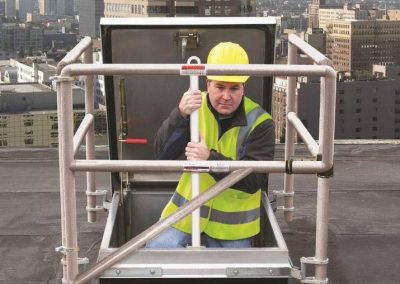

Bilco Ladder-Up Post in use. View from rooftop.
Flat Roof Access Hatch Safety Post. Safe entry and exit from roof hatch.
Flat roof Access Ladder Up Post. Spring assisted operation with hold-open mechanism.
Safety Ladder-Up Post release mechanism.
Pull at top of roof access safety post.
Ladder-up flat roof access safety post installation kit.

The Roof Access Safety Post from Bilco (also known as a Ladder Up Post) helps to provide safe entry and exit through flat roof access hatches. The spring-assisted telescopic post is fitted just beneath the roof hatch. Although designed for mounting to a fixed ladder, it can also be secured to other surfaces.

Available in a range of materials and finishes to suit the environment it will be used within. Including powder-coated steel, galvanised steel, 304 stainless steel and aluminium.



Key benefits at a glance

  • Spring-assisted telescopic post for ease-of-use.
  • Automatically locks into the fully-raised position for safe access.
  • Convenient release mechanism for lowering the post.
  • Durable construction for many years of use.
  • Supplied with adjustable installation hardware.
  • Available in four material/finish options.
    • Powder-coated steel (yellow).
    • Galvanised steel.
    • Stainless steel (304 grade) – natural finish.
    • Aluminium – natural finish.
  • Extension and retraction of the post is controlled by a stainless steel spring balancing mechanism.
  • The roof access safety post is automatically locked when in the extended position. Pulling on the lever disables the lock and allows the post to be gently retracted to the stowed position.
  • Supplied with an installation pack, including brackets, bolts, washers and nuts. The kit allows for fixing directly to fixed ladders. Where a fixed ladder is not being used, it is possible to also secure to a load-bearing surface, but please contact us to discuss before placing your order.

N/A

The Roof Access Ladder Up Safety Post is only available in one size, but four different finishes.



Part number

 Material & Finish Length when retracted (mm) Width (max.) (mm)

LU-1

Steel – yellow powder coat

1560

 76

LU-2

Steel – galvanised

1560

 76

LU-3

Stainless Steel 304 – natural finish

1560

 76

LU-4

Aluminium – natural finish

1560

 76



Roof hatch weight: 11 kg (7kg Aluminium LU-4)

Where not fitting to a fixed ladder, please contact us to discuss suitability for your project.



  • Supplied with a manufacturer’s 10-year warranty

Drawings

Bilco Ladder Up Safety Post

i

PDF File



i

PDF File



NBS Source

Technical specification for the Ladder Up roof access hatch safety post can be found on NBS Source.
