FAKRO LWL Extra timber loft ladder. Designed for ease of use and comfort

Wooden loft ladder and hatch box Load rating of 160kg per tread Supplied with handrail as standard Thermally insulated. U value = 0.74W/m2K Easy installation

LWL Extra Loft Ladder

The LWL Extra loft ladder…

…specially designed for high ceilings

From £380 (excl. VAT)

Including delivery to any UK mainland address

CONTACT US FOR A QUOTE

KEY FEATURES

Material: Wood
Operation: 3-part folding
Load capacity: 160 kg per step
U-value: 0.74 W/m2K
Max floor-to-ceiling height: 3.05 m

FIND OUT MORE

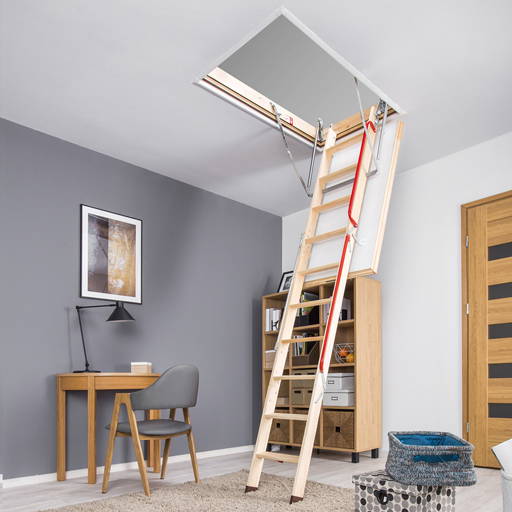

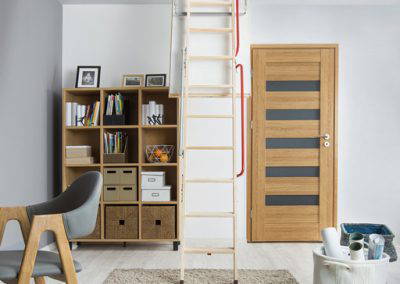

LWL wooden loft ladder.

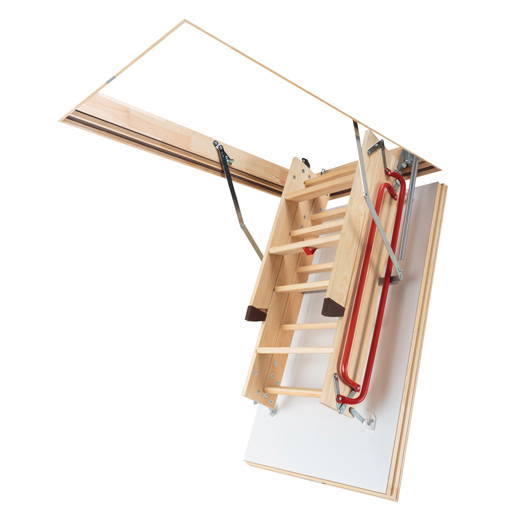

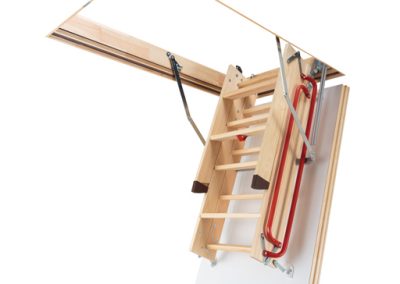

LWL Komfort timber loft ladder. 3-part part folding ladder.

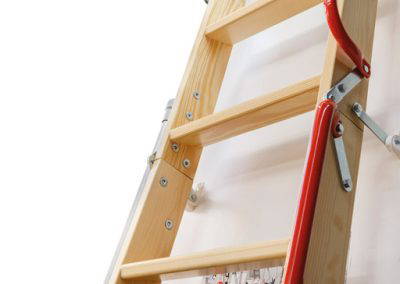

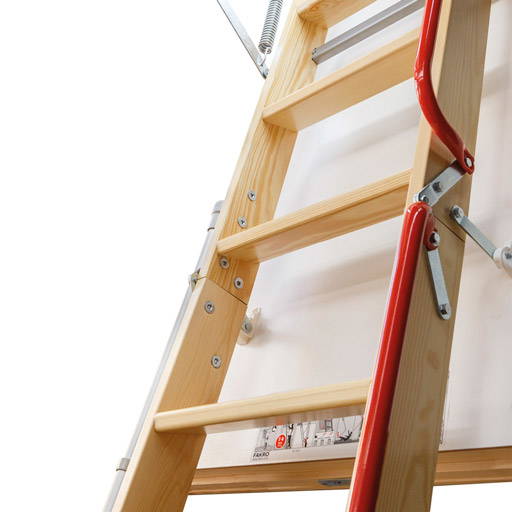

LWL loft ladder with two handrails for improved comfort.

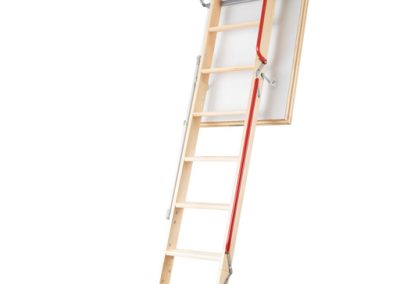

LWL timber loft ladder. Fully Extended

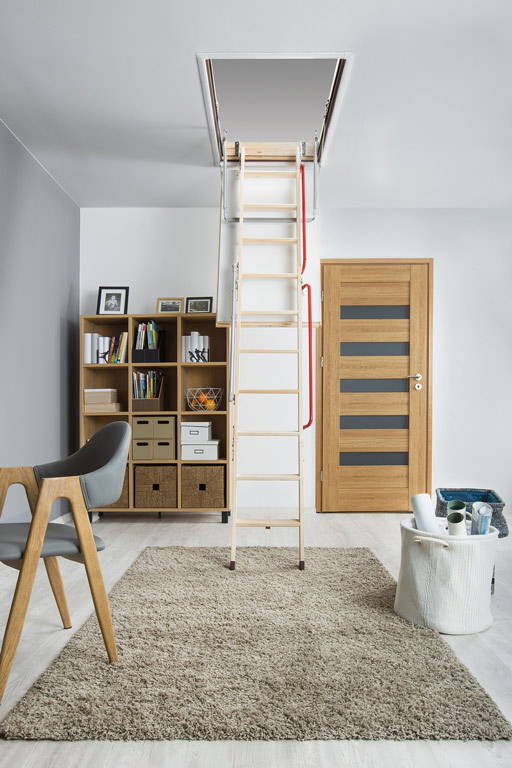

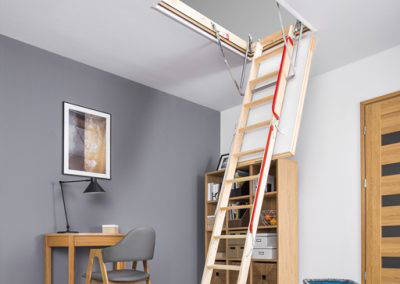

LWL wooden loft ladder.

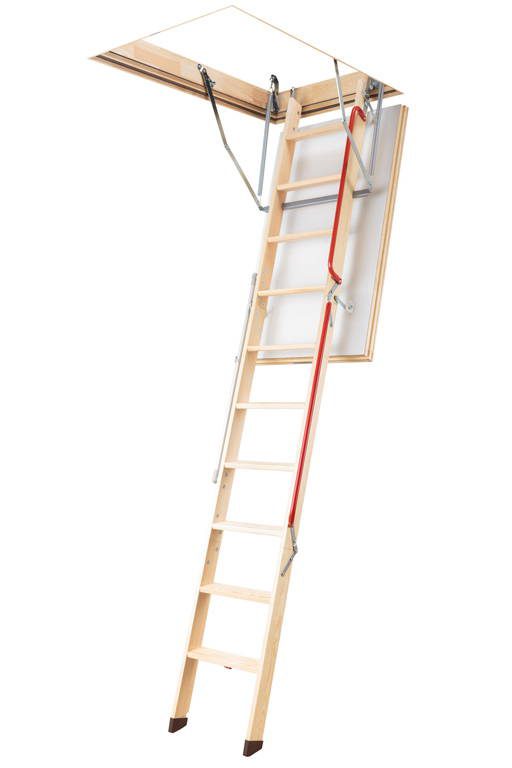

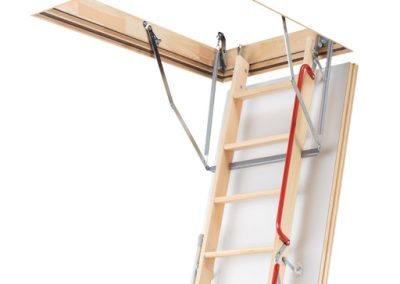

FAKRO LWL Extra timber loft ladder. Designed for ease of use and comfort

The LWL Extra Loft Ladder is a timber loft ladder that has been specially designed for higher ceilings (from 2.6m to 3.05m). It features a double handrail, with one attached to the top section of the ladder, and another fitted to the middle section. In addition, a spring mechanism on the ladder helps make folding and un-folding the ladder particularly easy.

The white hatch comes with 5cm of insulation that provides a U-value of 0.74 W/m2K



Key benefits at a glance

  • Traditional timber loft ladder for higher ceilings (up to 3.05 m).
  • Additional handrail for added comfort.
  • Spring-assisted folding and un-folding.
  • Fully assembled for quick installation.
  • Load capacity of 160 kg per step.
  • Insulated white hatch (U-value of 0.74 W/m2K)
  • 3-part folding wooden loft ladder
  • Traditional loft ladder design
  • Load capacity of 160 kg per step
  • Supplied assembled in a hatch box with insulated trapdoor
    • Trapdoor supplied with a white finish to both sides
    • Standard hatch box height of 140 mm
    • Designed for quick and easy installation
  • Insulated (U-value of 0.74 W/m2K), plus peripheral seal
    • Reducing loss of heat and lowering energy costs
  • Available in standard hatch sizes for floor-to-ceiling heights between 2600 mm and 3050 mm
  • Steps / treads with anti-slip profile for comfort and safety
    • Step width of 300 mm (for 600mm wide aperture) and 340mm (for 700mm wide aperture)
    • Step depth of 80 mm
  • Supplied ready to install, including:
    • Handrails on the top and middle sections of the ladder

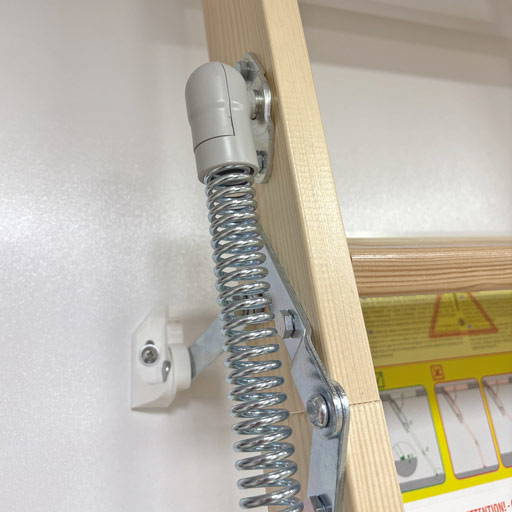

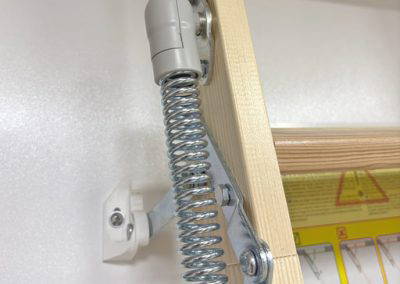

    • Spring mechanism to assist with folding and un-folding the ladder
    • Protective feet
    • Operating rod

The LWL Extra is available in the following standard sizes that can be ordered on line.

Clear room height (mm)

 Opening length x width (mm) Case height (mm) *

2600 – 2800

1200 x 600

140

2600 – 2800

1200 x 700

140
2600 – 2800 1300 x 700

140
2340 – 2800 1400 x 700

140
2800 – 3050 1300 x 700

140
2800 – 3050 1400 x 700

140



  • Manufactured and tested to EN 14975
  • Supplied with a manufacturer’s 3-year warranty
